Breakthrough in Non-Cyanide Gold Leaching: The PANDA Solution for Carbonate Ores
Are you struggling to balance gold recovery efficiency with stringent environmental regulations? The mining industry is under increasing pressure to eliminate cyanide use, but finding a non-toxic alternative that doesn't compromise on yield has been a persistent challenge.
Based on a comprehensive case study conducted on a carbonate-type gold mine in Wenshan, Yunnan, we present the definitive solution: The PANDA Environmentally Friendly Gold Leaching Agent.
This study demonstrates how FKN not only matches but surpasses traditional cyanidation methods, offering a sustainable pathway to high-grade gold recovery without the hazardous waste liabilities.
Why PANDA is the Future of Gold Beneficiation
The PANDA leaching agent has been specifically engineered to replace sodium cyanide (NaCN). Unlike other non-cyanide methods such as thiourea or thiosulfate, which often suffer from high reagent consumption and cost, FKN delivers industrial viability.
Our research proves that PANDA is not just a "green" alternative; it is a superior operational choice.

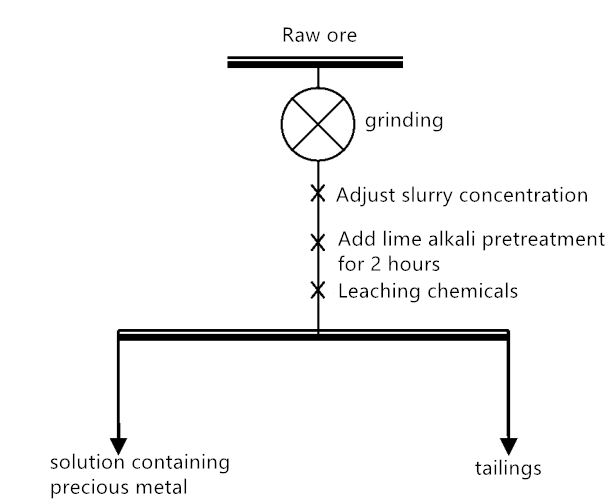

Figure 1: The optimized leaching process flow chart utilizing the PANDA agent.
Unmatched Performance: Beating Cyanide on Every Metric
The experimental data from the Wenshan mine reveals a compelling competitive advantage for PANDA. When compared directly with sodium cyanide under identical conditions, PANDA achieved a gold leaching rate of 96.53%, outperforming cyanide's 96.22%.
But the benefits go far beyond a slightly higher recovery rate. The optimized parameters for the PANDA process are designed for maximum efficiency:
Grinding Fineness: -0.074mm (90% content)
Slurry Concentration: 40%
Lime Dosage: 3kg/t (with a 2-hour alkali pretreatment)
PANDA Dosage: 600g/t
Leaching Time: 24 hours

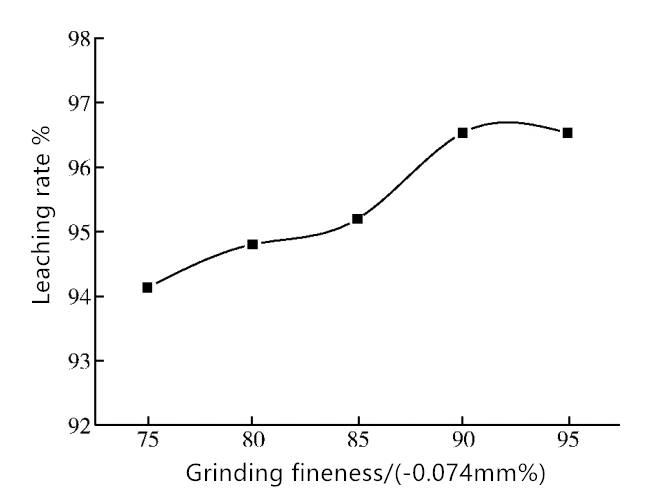

Figure 2: Gold leaching efficiency peaks at a grinding fineness of 90% passing -0.074mm.
The Environmental Advantage: Zero Detoxification Needed
One of the most significant barriers in traditional mining is the cost and complexity of tailings management. This is where PANDA delivers a revolutionary benefit.
Toxicity analysis of the tailings leached by PANDA showed cyanide levels <0.004 mg/L and copper levels at 0.26 mg/L. These values are far below the hazardous waste limits stipulated.
This means the tailings do not require detoxification and can be discharged directly. This eliminates the need for expensive detoxification infrastructure and ongoing chemical treatment costs.

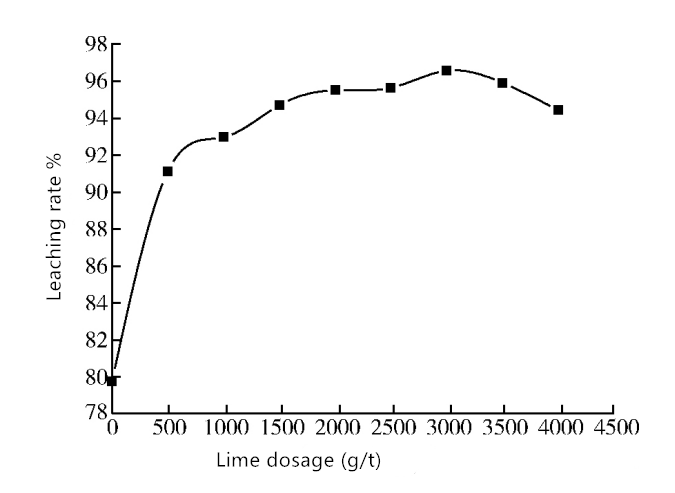

Figure 3: Optimal leaching results are achieved with a lime dosage of 3kg/t.
Substantial Cost Savings and Economic Efficiency
Switching to PANDA isn't just good for the environment; it's excellent for your bottom line. A detailed economic analysis comparing PANDA to the cyanide process reveals significant savings.
For a mine operating at a scale of 500t/d, utilizing PANDA leads to:
Elimination of Detoxification Costs: Saving approximately $4.65 million annually on tailings treatment.
Reduced Reagent Consumption: Lower chemical usage saves $3.93 million per year in operational costs.
Reduced Capital Expenditure (CAPEX): Avoiding the construction of a tailings detoxification station saves $4.15 million in initial infrastructure investment.

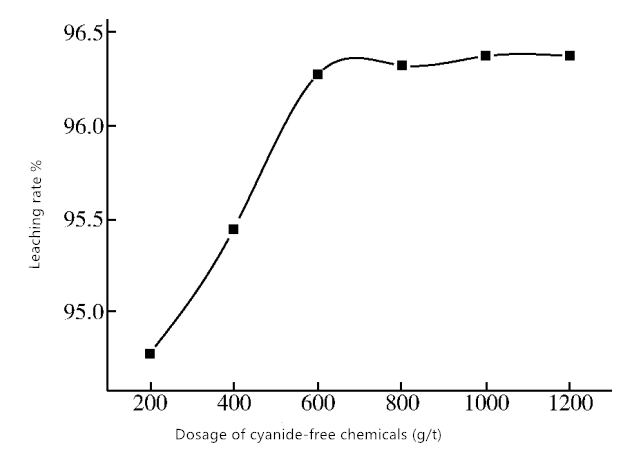

Figure 4: The ideal dosage of PANDA environmentally friendly gold-dissolving agent is 600g/t.
Conclusion: A Sustainable and Profitable Alternative
The data is clear. For carbonate-type gold ores, the PANDA environmentally friendly gold leaching agent presents a viable, profitable, and responsible alternative to sodium cyanide.
It solves the industry's biggest pain points:
High Toxicity Risk: Mitigated by non-toxic tailings.
Long Processing Time: Reduced by over 12 hours compared to cyanide.
High Operational Costs: Drastically cut through eliminated detoxification needs.

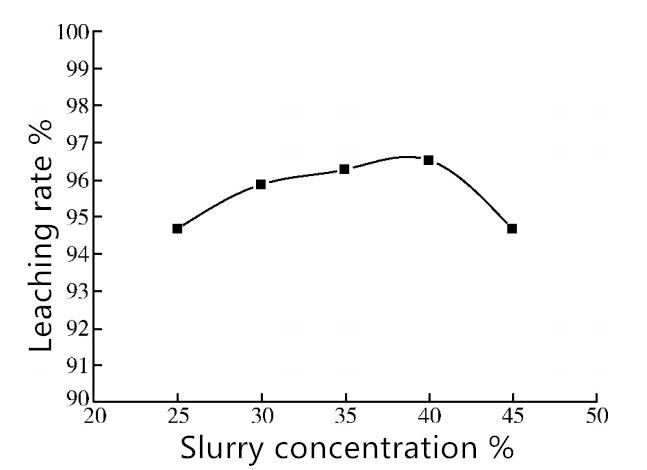

Figure 5: The impact of slurry concentration on leaching efficiency.
If you are looking to modernize your extraction process, reduce your environmental footprint, and cut operational costs, the time to adopt PANDA technology is now.
Related Catalogues:
Related Products:
Related Solutions:
GOLD RECOVERY OPTIMIZATION SYSTEM
FAQ for Breakthrough in Non-Cyanide Gold Leaching: The PANDA Solution for Carbonate Ores
1. What is the optimal leaching time for PANDA compared to traditional cyanide methods?
Answer: One of the most significant operational advantages of the PANDA agent is the reduction in processing time. While traditional cyanide leaching often requires up to 38 hours, the PANDA process achieves optimal results in just 24 hours. This represents a time saving of more than 12 hours, significantly increasing throughput and reducing tank retention requirements.
2. Can tailings from the PANDA leaching process be discharged directly without detoxification?
Answer: Yes. Toxicity analysis of the tailings leached by the PANDA agent showed cyanide levels below 0.004 mg/L and heavy metal levels (Copper, Lead, Zinc, Arsenic) far below the hazardous waste limits of GB5085.3-2007. This means the tailings do not require detoxification and can be filtered and discharged directly, saving millions in treatment costs.
3. How does the gold leaching rate of PANDA compare to sodium cyanide?
Answer: The PANDA agent outperforms sodium cyanide in recovery efficiency. In controlled tests on carbonate gold ores, PANDA achieved a leaching rate of 96.53%, which is 1.4% higher than the rate achieved by sodium cyanide (95.00%). This higher recovery rate directly translates to increased revenue from the same volume of ore.
4. What is the recommended dosage of PANDA agent versus sodium cyanide?
Answer: The FKN process is more chemically efficient. The optimal dosage for PANDA is 600g/t of ore. In contrast, the standard dosage for sodium cyanide is typically 800g/t. By reducing the chemical consumption by 200g/t, mines can significantly lower their reagent purchase costs annually.
5. Is the PANDA leaching agent suitable for carbonate-type gold mines?
Answer: Absolutely. The case study data confirms that PANDA is highly effective for carbonate-type gold ores, which are common in regions like Yunnan. The ore properties analysis showed that PANDA works efficiently with ores containing calcite and dolomite, achieving a stable leaching rate of over 96.40% under optimized grinding fineness (-0.074mm, 90% content) and slurry concentration (40%) conditions.
