Sodium Thiosulfate: A Non-Toxic Leaching Enhancer for Strategic Metal Recovery
Application Scope
Sodium thiosulfate (Na₂S₂O₃) is a promising alternative lixiviant to cyanide for strategic metal recovery due to its low toxicity, favorable leaching kinetics, and effectiveness in treating complex gold ores. It is mainly applied in copper-ammonia-thiosulfate leaching systems for refractory gold resources and also supports silver, cobalt, manganese, and nickel recovery from challenging mineral sources.
Primary Application — Gold Extraction from Refractory Ores
The most significant application of sodium thiosulfate is gold leaching from refractory ores where conventional cyanidation faces limitations. In the copper-ammonia-thiosulfate system, gold dissolves by forming a stable Au(S₂O₃)₂³⁻ complex, providing an alternative pathway for carbonaceous and copper-bearing gold ores that may negatively affect cyanide performance.
Research on refractory gold-bearing arsenosulfide concentrates demonstrates that alkaline pretreatment combined with thiosulfate leaching increased gold dissolution from 4.6% using cyanide without pretreatment to 91.9%. The process typically operates under ambient pressure conditions in ammoniacal solutions with pH 8–10, sodium thiosulfate concentration of 50–60 g/L, and divalent copper salt catalyst addition.
The technology has also been commercially applied for carbonaceous gold ore heap leaching, demonstrating the potential scalability of thiosulfate-based gold recovery systems.
Primary Application — Silver Leaching
Sodium thiosulfate is also applied in silver extraction from sedimentary ores containing silver and gold values. The leaching mechanism forms soluble silver-thiosulfate complexes, providing operational flexibility under controlled hydrometallurgical conditions.
Kinetic studies indicate that silver leaching with sodium thiosulfate exhibits low activation energy, suggesting diffusion-controlled behavior and limited sensitivity to moderate temperature variation.
Primary Application — Cobalt and Manganese Recovery from Secondary Resources
Sodium thiosulfate functions as a reducing agent for cobalt and manganese extraction from secondary resources such as zinc plant residues and complex oxide materials. Under optimized acidic conditions, thiosulfate assists in reducing manganese and cobalt oxides, improving metal dissolution efficiency.
For zinc residue processing, optimized conditions achieved high cobalt and manganese dissolution rates. Acidic thiosulfate systems have also demonstrated cobalt extraction performance from limonitic laterite resources, providing an alternative route for critical metal recovery.
Secondary Application — Nickel Extraction
In nickel recovery applications, sodium thiosulfate can participate in hydrometallurgical extraction systems for laterite ores and secondary resources. Although cobalt selectivity is generally higher due to manganese oxide reduction behavior, thiosulfate-based systems have demonstrated nickel leaching capability under suitable process conditions.
Mechanism
Sodium thiosulfate functions through different mechanisms depending on the target metal system.
In gold leaching, the Cu(II)-NH₃-S₂O₃²⁻ system uses copper ions as an oxidizing agent, while thiosulfate complexes with dissolved gold species to form the stable Au(S₂O₃)₂³⁻ complex. Maintaining alkaline conditions is essential for thiosulfate stability, with typical operating pH ranges of approximately 9.0–10.5.
For cobalt and manganese recovery, sodium thiosulfate acts as a reducing reagent in acidic environments. During the reaction process, thiosulfate decomposition products contribute to the reduction of high-valent metal oxides, promoting metal dissolution.
Physicochemical Properties
| Parameter | Specification |
|---|---|
| CAS Number | 7772-98-7 |
| Molecular Formula | Na₂S₂O₃ |
| Molecular Weight | 158.11 g/mol (anhydrous) |

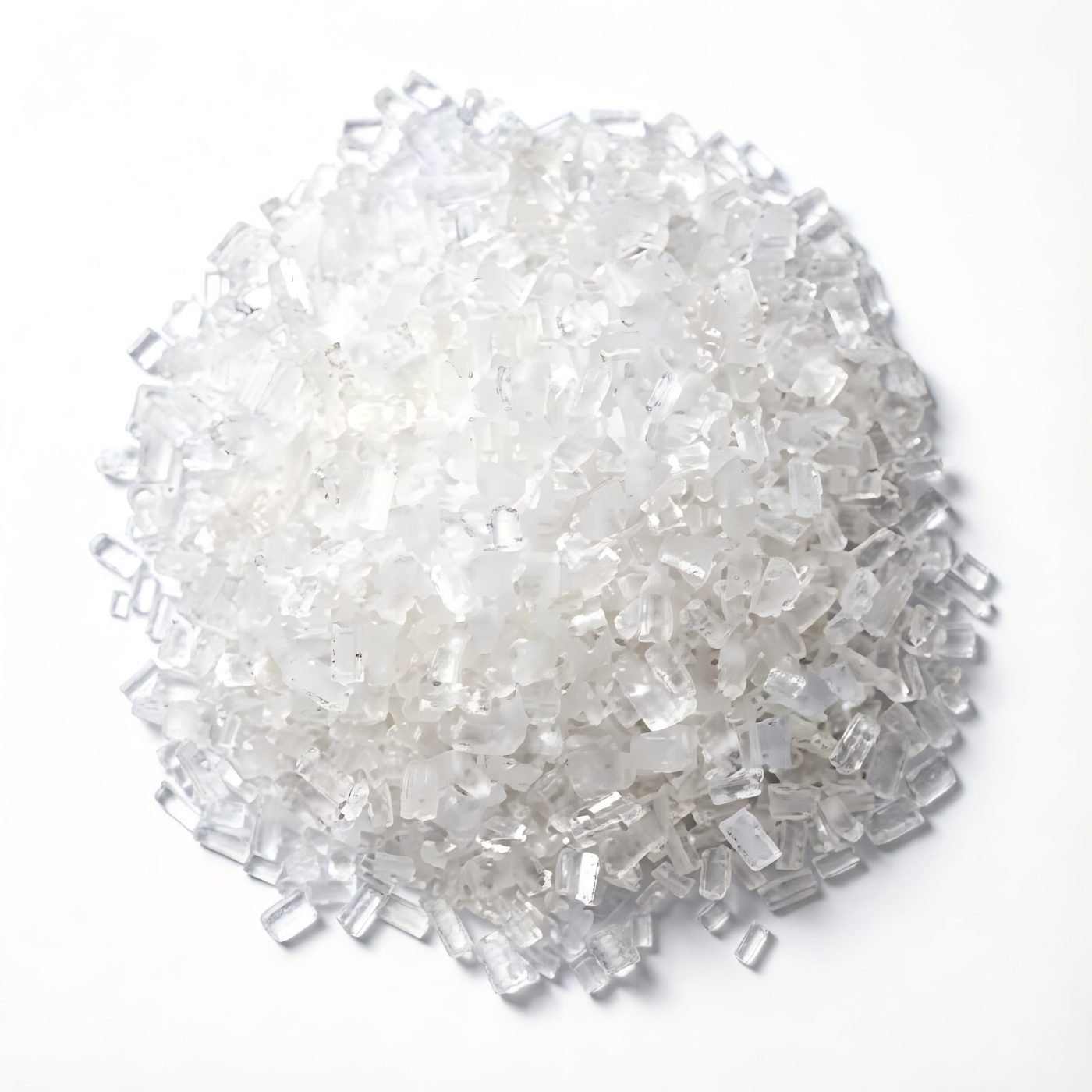

| Appearance | White crystalline powder |
| Assay | ≥99.0% |
| Solubility | Highly soluble in water |
| Typical Leach Concentration | 50–60 g/L |
| Optimal pH Range | 9.0–10.5 |
Specifications
Sodium thiosulfate is supplied as a high-purity crystalline reagent suitable for hydrometallurgical applications. In gold leaching systems, performance depends on maintaining appropriate thiosulfate concentration, copper catalyst balance, ammonia conditions, and solution stability.
Storage & Handling
Store sodium thiosulfate in tightly sealed containers in a cool, dry, and well-ventilated area. Protect the material from moisture and strong oxidizing agents to maintain reagent stability.
Personnel handling sodium thiosulfate should use appropriate personal protective equipment including chemical-resistant gloves, safety goggles, and dust protection. Compared with cyanide-based systems, sodium thiosulfate presents significantly lower toxicity and reduced environmental concerns.
Advantages / Limitations
Advantages
Non-toxic alternative to cyanide with reduced environmental and safety risks.
Effective for carbonaceous and copper-bearing gold ores where cyanidation performance may be limited.
Demonstrated application in commercial-scale gold recovery systems.
Supports cobalt and manganese extraction from complex secondary resources.
Potential for lixiviant recycling to reduce reagent consumption.
Limitations
Requires careful control of pH, ammonia concentration, and solution chemistry to prevent thiosulfate decomposition.
Reagent consumption may increase due to oxidation reactions in copper-ammonia systems.
Operational management is more complex compared with conventional cyanide circuits.
Summary
Sodium thiosulfate (CAS 7772-98-7) is a non-toxic hydrometallurgical reagent designed for strategic metal recovery, with its primary application in refractory gold ore leaching as an alternative to cyanide-based processes. Operating in copper-ammonia-thiosulfate systems under alkaline conditions, it enables gold extraction from challenging resources while also supporting silver, cobalt, manganese, and nickel recovery applications.
For mining operations seeking lower-toxicity leaching solutions, improved treatment options for refractory ores, and sustainable recovery pathways for critical metals, sodium thiosulfate provides a technically proven reagent option.
Sodium Thiosulfate – FAQ
Q1. How does sodium thiosulfate enhance gold leaching in alternative gold recovery processes?
Sodium thiosulfate is used as an alternative gold lixiviant in specific hydrometallurgical applications where conventional cyanidation may encounter limitations. It forms soluble gold-thiosulfate complexes under suitable chemical conditions, which can support gold dissolution from certain ore types, including some copper-bearing or carbonaceous gold ores. The effectiveness of sodium thiosulfate depends on ore mineralogy, oxidizing conditions, reagent stability, pH control, and downstream recovery technology. Laboratory leaching tests are typically required to evaluate gold extraction, reagent consumption, and solution chemistry before industrial implementation.
Q2. What factors determine the optimal dosage of sodium thiosulfate for gold leaching applications?
The optimal sodium thiosulfate dosage depends on gold grade, mineral composition, copper content, sulfide minerals, oxidation conditions, and the selected recovery process. An insufficient dosage may limit gold-thiosulfate complex formation, while excessive addition can increase reagent consumption and operating costs. In practical applications, dosage optimization is performed through bottle leaching tests by monitoring gold recovery, thiosulfate stability, pH variation, dissolved oxygen, and impurity behavior. A suitable dosage should provide effective gold dissolution while maintaining stable reagent performance throughout the leaching cycle.
Q3. How does sodium thiosulfate perform in copper-gold ore leaching compared with cyanide systems?
Sodium thiosulfate is considered an alternative leaching reagent for certain copper-gold ores because copper minerals can consume significant amounts of cyanide and reduce cyanidation efficiency. In thiosulfate-based systems, gold dissolution occurs through the formation of gold-thiosulfate complexes, while process chemistry must be carefully controlled to maintain reagent stability. Performance evaluation includes comparison of gold extraction, copper dissolution behavior, reagent consumption, leaching kinetics, and downstream recovery efficiency. The suitability of sodium thiosulfate depends strongly on copper mineral type, ore oxidation state, and the overall hydrometallurgical flowsheet.
Q4. How does sodium thiosulfate concentration affect gold leaching efficiency?
Sodium thiosulfate concentration plays an important role in controlling gold dissolution kinetics and complex formation during leaching. Increasing concentration within an appropriate range may improve gold dissolution by providing sufficient thiosulfate ions, but excessive concentration can increase reagent consumption and create additional process control requirements. During laboratory evaluation, parameters such as gold extraction rate, thiosulfate decomposition, pH stability, oxidation-reduction potential, and leaching time should be monitored. The optimum concentration varies depending on ore characteristics, including gold liberation, copper minerals, sulfide content, and gangue composition.
Q5. What is the role of sodium thiosulfate in high-sulfur refractory gold ore leaching?
For high-sulfur refractory gold ores, sodium thiosulfate may be investigated as part of alternative leaching strategies where sulfide minerals affect conventional gold recovery. Its performance depends on the degree of gold encapsulation, sulfide oxidation behavior, and the ability to maintain stable thiosulfate chemistry during leaching. Pretreatment methods, particle size control, oxidant selection, and solution conditions may significantly influence results. Laboratory testing with mineralogical analysis is recommended to determine whether sodium thiosulfate can provide technical advantages for a specific refractory gold ore before scale-up.
Q6. How should sodium thiosulfate leaching be optimized for gold ores containing copper minerals?
Optimization of sodium thiosulfate leaching for copper-bearing gold ores requires careful control of copper dissolution, thiosulfate stability, ammonia or other supporting chemistry, and gold recovery conditions. Copper minerals can significantly influence reagent consumption and solution behavior, making mineralogical characterization important before process selection. Key optimization parameters include sodium thiosulfate concentration, pH, oxidation potential, temperature, and leaching residence time. Comparative laboratory tests are normally conducted to evaluate gold recovery, copper interference, reagent stability, and overall process economics.
Q7. How does temperature influence sodium thiosulfate-assisted gold leaching performance?
Temperature affects sodium thiosulfate leaching by influencing reaction kinetics, mineral dissolution rates, and thiosulfate stability. Moderate temperature increases may accelerate gold dissolution reactions, while excessive temperatures can promote thiosulfate decomposition and increase reagent consumption. Temperature optimization should be evaluated together with other process variables, including reagent concentration, pH, oxidation conditions, and leaching time. Laboratory testing under different temperature conditions helps determine the most suitable operating range while maintaining stable gold-thiosulfate complex formation and efficient reagent utilization.
Q8. Can sodium thiosulfate be applied in gold CIP processes to reduce cyanide consumption?
Sodium thiosulfate is generally studied as an alternative gold leaching reagent rather than a direct additive for conventional CIP circuits. In some applications, thiosulfate-based systems are evaluated as substitutes for cyanidation where cyanide consumption is increased by copper minerals, carbonaceous materials, or complex ore conditions. The potential reduction of cyanide usage depends on the selected process design, ore mineralogy, and gold recovery method. Technical evaluation should include comparative testing of gold extraction, reagent consumption, recovery efficiency, and downstream treatment requirements.
Q9. What factors should be considered when selecting sodium thiosulfate for industrial gold leaching projects?
Selection of sodium thiosulfate for industrial gold leaching requires evaluation of ore mineralogy, gold liberation, copper and sulfide content, reagent stability, environmental requirements, and recovery technology compatibility. Important process parameters include sodium thiosulfate dosage, solution chemistry, pH control, oxidation conditions, particle size, and leaching duration. Laboratory bottle tests and, when necessary, pilot trials are recommended to verify technical feasibility. A comprehensive evaluation helps determine whether sodium thiosulfate is suitable for a specific gold processing operation and how it should be integrated into the overall flowsheet.
Q10. How does sodium thiosulfate compare with ammonium thiosulfate in gold leaching applications?
Sodium thiosulfate and ammonium thiosulfate are both sulfur-based reagents used in alternative gold leaching technologies, but they operate under different chemical environments. Ammonium thiosulfate is commonly associated with ammoniacal systems, particularly for some copper-bearing gold ores, while sodium thiosulfate may be selected based on reagent availability, process conditions, and recovery requirements. The choice depends on ore composition, impurity levels, leaching chemistry, and downstream gold recovery methods. Comparative laboratory testing is recommended to evaluate gold extraction, reagent stability, consumption, and overall process suitability for each specific ore type.
