Base Metal Hydrometallurgy Resin Selection Guide (Copper, Molybdenum, Tin, Bismuth)

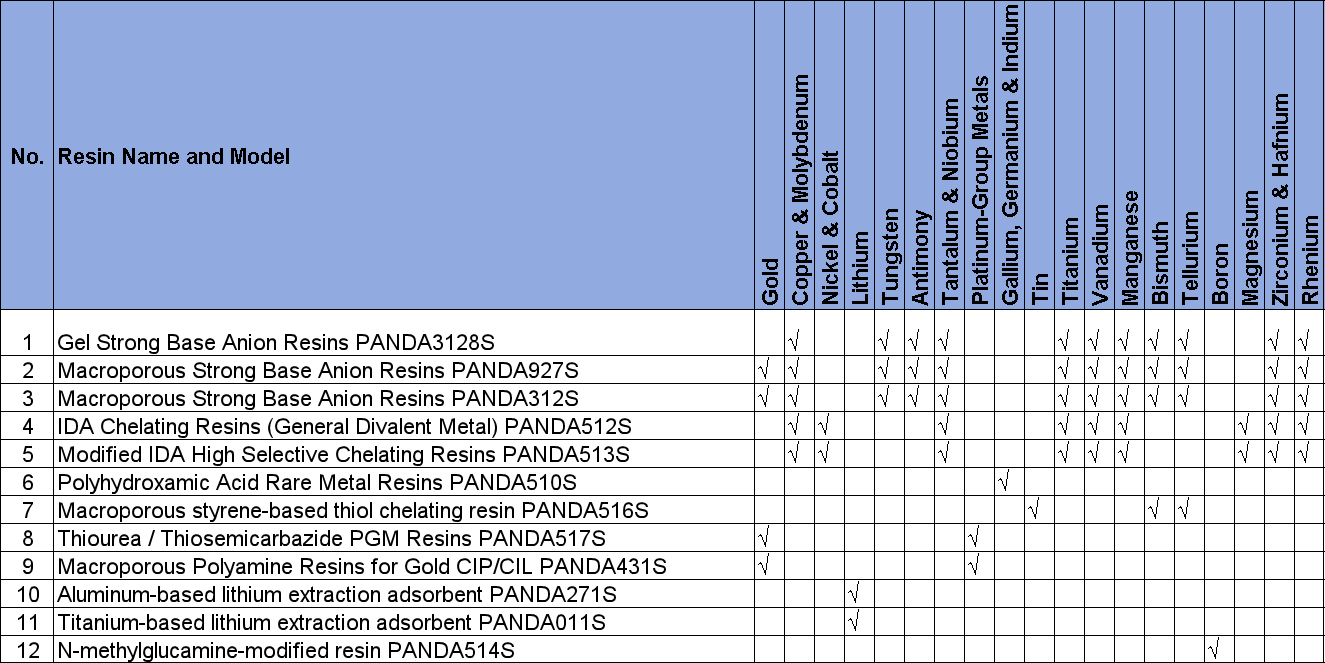

Mining Resin Selection Matrix

FKN PANDA provides different ion exchange resins and adsorption materials for precious metals, base metals, rare metals, and lithium recovery applications. The following matrix summarizes typical resin application suitability.

For detailed technical parameters and application conditions, please refer to each resin product page.

1. Simplified Selection Guide for Copper & Molybdenum Recovery

Two Fully Independent & Matching Core Systems (Cannot Be Mixed)

System 1: PANDA3128S/ PANDA312S / PANDA927S (Strong Base Anion Resins)

Only adsorb molybdate and copper complex anions in acidic oxidized liquid, molybdenum recovery as primary target with copper recovered simultaneously. Copper and molybdenum are co-adsorbed, mixed eluate obtained without direct separation capacity.

System 2: PANDA512S / PANDA513S (IDA Chelating Resins)

Only adsorb copper, nickel and cobalt cations, zero adsorption of molybdenum. Applied to tail liquid after full molybdenum removal by anion resins to purify free copper ions separately, realizing thorough separation of copper and molybdenum.

1.2 Three Strong Base Anion Resins for Front-End Co-Enrichment of Copper & Molybdenum

PANDA3128S Gel Strong Base Anion Resin

• High exchange capacity with low cost.

• Only suitable for low-turbidity, sediment-free high-purity clarified mother liquor for synchronous copper-molybdenum enrichment.

• Not resistant to suspended solids, prone to pore blockage and fragmentation; incompatible with crude mine feed liquid.

PANDA312S General Macroporous Strong Base Anion Resin

• Industrial standard mainstream grade.

• Suitable for copper-molybdenum leachate and heap leach clarified liquid with medium impurities.

• Slightly resistant to mild contamination, balancing efficiency and stability, fits most copper-molybdenum co-recovery working conditions.

PANDA927S Mine-Grade Macroporous Weak Base Anion Resin

• High abrasion resistance and heavy anti-contamination performance.

• Designed for high-turbidity, high-sediment, flue gas washing and crude mine feed liquid with harsh conditions.

• Stably enrich copper and molybdenum under tough environments, top choice for overseas mines.

Unified Shortcoming: All three resins co-adsorb copper and molybdenum; matched back-end chelating resins are required for refining to obtain single high-purity metal products.

1.3 Two IDA Chelating Resins for Back-End Single Copper Extraction (No Molybdenum Adsorption)

Prerequisite: Molybdenum must be completely removed by anion resins, only applied for purification of residual copper cations.

PANDA512S General IDA Resin

• Broad-spectrum adsorption of divalent metals including copper, nickel, manganese and magnesium without fine selectivity.

• Suitable for low-cost crude copper extraction and wastewater impurity removal to meet discharge standards, ideal for small factories and low-end recovery projects.

PANDA513S High Selectivity IDA Resin

• Priority adsorption of copper and nickel, strongly repel magnesium and manganese with superior separation precision.

• Applicable to high-end hydrometallurgy, lithium battery recycling and high-purity copper salt production, supporting mass production of high-purity copper liquid via fine separation of copper and nickel.

1.4 Two Standard Complete Process Solutions

Solution 1: Crude Co-Recovery of Copper & Molybdenum (No Separation Required)

Use PANDA3128S for clean mother liquor | PANDA312S for regular feed liquid | PAND927S for high-impurity mine liquid; complete synchronous enrichment of copper and molybdenum in one step.

Solution 2: High-Purity Separation of Copper & Molybdenum (Mainstream High-End Process)

Front-end PANDA312S /PANDA927S adsorb and remove molybdenum components → Back-end PANDA513S /PANDA512S purify copper separately, fully split molybdenum and copper to produce two types of high-purity products.

1.5 Simplified Selection Comparison Table

2. Simplified Selection Guide for Tin Extraction with PANDA516S Thiol Resin

2.1 Exact Model Boundary (Core Avoidance Tips)

PANDA516S (Modified Thiol Resin) carries exclusive -SH thiol functional group, the only dedicated mainstream resin for hydrometallurgical recovery of tin and bismuth.

Tin exists as Sn²⁺ and Sn⁴⁺ cations in weakly acidic/neutral leachate. The soft sulfur thiol group provides ultra-strong specific coordination adsorption capacity for tin, which cannot be replaced by IDA resins or strong base anion resins.

2.2 Five Irreplaceable Core Advantages of PANDA516S

Advantage 1: Far Superior Tin Selectivity vs IDA Resins (Non-Replaceable)

IDA resins only adsorb hard metals such as copper, nickel, zinc and magnesium, barely capturing tin; tin will fully penetrate high iron & high zinc tin ore liquid. PANDA 405 thiol groups preferentially capture tin and bismuth with powerful anti-interference against iron and zinc impurities, realizing high-purity tin enrichment directly from complex feed liquid.

Advantage 2: Full Coverage of Mainstream Tin Hydrometallurgy Working Conditions

Compatible with full pH 1–7 weak acid & neutral scenarios: cassiterite acid leachate, tin smelting flue gas wastewater, electroplating tin wastewater, lead-tin/bismuth-tin associated ore, deep enrichment of low-concentration tin tailings; synchronous recovery of tin and bismuth available.

Advantage 3: Macroporous Anti-Pollution Design for Crude Mine Feed Liquid

High cross-linking macroporous structure tolerates mine sludge and colloidal suspended solids without easy pore blockage; high mechanical strength prevents pulverization under long-term column operation, suitable for tin ore production lines in Africa and Southeast Asia with high impurities.

Advantage 4: Recyclable & Low Operation Cost

Efficient tin elution via dilute hydrochloric acid + thiourea to obtain high-concentration tin concentrate liquid for direct electrowinning or tin salt precipitation; reusable for over 280 cycles, stepwise elution supports separated recovery of tin, bismuth and mercury.

Advantage 5: Perfect Matching with Full PANDA Resin Process Flow

Front-end anion resins (PANDA312S / PANDA927S) remove tungsten and antimony anions → Middle PANDA 405 enriches tin & bismuth → Back-end PANDA512S / PAND513S remove copper, nickel and zinc to meet wastewater discharge standards. One complete product line realizes full component recovery of tin-associated ore.

3. Bismuth Extraction Resin Selection Guide

3.1 PANDA3128S Strong Base Anion Exchange Resin

Suitable for feed liquid where bismuth exists as bismuth chloride complex anions (BiCl₄⁻, BiCl₆³⁻) under acidic chloride system for direct bismuth adsorption & enrichment. Mainly applied for high-purity bismuth refining in clarified, low-turbidity liquid, featuring high exchange capacity and high purity eluted bismuth liquid, ideal for refining sections with clean working conditions free of massive mine sludge.

3.2 PANDA927S Macroporous Weak Base Anion Exchange Resin

Suitable for crude bismuth ore leachate with high turbidity and sediment. Macroporous wear-resistant structure delivers strong anti-pollution & anti-blocking capacity, stably adsorbing bismuth complex anions in bismuth-lead and tin-bismuth associated ore feed liquid with complex impurities; fits on-site bismuth extraction without precise filtration under harsh conditions.

3.3 PANDA312S Macroporous Strong Base Anion Exchange Resin

General mainstream grade for industrial bismuth extraction, compatible with most bismuth ore acid leachate under acidic chloride system. Fast adsorption speed for bismuth chloride anions with stable operation, handles filter-pressed bismuth feed liquid and balances adsorption capacity & impurity resistance; primary selection for bismuth smelting and comprehensive tin-bismuth recovery.

3.4 PANDA516S Thiol Chelating Resin

Suitable for selective enrichment of Bi³⁺ bismuth ions under acidic system with strong chelating affinity for bismuth. Preferentially adsorbs bismuth from feed liquid containing massive copper, lead, zinc and iron impurities with excellent separation performance; widely applied for deep bismuth purification, wastewater bismuth removal and separation processes of tin-bismuth & lead-bismuth.

Base Metal (Copper, Molybdenum, Tin and Bismuth) Hydrometallurgy Resin Selection Guide – FAQ

Q1. How should ion exchange resins be selected for copper recovery from hydrometallurgical leach solutions?

Copper recovery resin selection depends on solution chemistry, including copper concentration, acidity, competing metal ions, and impurity levels. Chelating resins are commonly evaluated for selective copper adsorption because their functional groups can interact with specific metal ions under controlled conditions. FKN base metal recovery resins are designed for hydrometallurgical applications where selective separation, adsorption capacity, and regeneration efficiency are important factors. Laboratory adsorption and column testing are recommended to determine suitable resin performance under actual copper leaching conditions before industrial implementation.

Q2. How do iron ions affect resin selectivity during copper hydrometallurgical recovery?

Iron ions are common impurities in copper leaching systems and may compete with copper for adsorption sites depending on resin chemistry and solution conditions. High iron concentrations can reduce copper selectivity and increase resin loading of unwanted metals. Proper control of solution oxidation state, pH adjustment, and pretreatment steps can help minimize interference. FKN copper recovery resin selection considers the presence of iron and other dissolved metals to support efficient copper separation and stable resin operation in complex hydrometallurgical processes.

Q3. What factors influence the adsorption capacity of chelating resins for copper recovery?

The adsorption capacity of chelating resins for copper depends on resin functional groups, polymer matrix structure, copper concentration, solution pH, temperature, and competing ions. Higher capacity does not always mean better process performance, as selectivity and regeneration efficiency are also critical considerations. FKN copper hydrometallurgy resin solutions are evaluated according to specific process requirements, helping engineers balance copper recovery efficiency, chemical consumption, and resin service life through laboratory testing and process optimization.

Q4. How are resins used for selective molybdenum recovery from copper-molybdenum leach solutions?

Molybdenum recovery from copper-molybdenum systems requires careful resin selection because molybdenum species, solution chemistry, and competing anions influence adsorption behavior. Anion exchange or specialized functional resins may be evaluated depending on the leaching conditions and molybdenum species present. FKN strategic metal recovery resin solutions focus on application-specific evaluation, including pH conditions, ionic composition, and adsorption selectivity, to support efficient molybdenum recovery from complex hydrometallurgical streams.

Q5. How does sulfur contamination affect resin performance in high-sulfur copper leaching systems?

High-sulfur copper ores may generate sulfur-containing compounds that can interfere with resin adsorption or cause fouling during operation. The impact depends on sulfur species, solution conditions, resin chemistry, and operating time. Effective filtration, solution pretreatment, and appropriate resin cleaning procedures can help maintain adsorption performance. FKN copper recovery resin selection considers potential sulfur-related contamination risks and supports the development of suitable operating strategies for maintaining stable resin capacity in challenging leaching environments.

Q6. What role does pH control play in copper and molybdenum separation using resin columns?

pH control is a key factor in resin-based copper and molybdenum recovery because it affects metal speciation, resin functional group activity, and adsorption selectivity. The optimal pH range depends on the target metal, resin type, and composition of the leach solution. Maintaining stable pH conditions helps improve separation efficiency and reduces unwanted adsorption of impurities. FKN base metal recovery resin systems are selected based on actual process chemistry to support reliable column operation and consistent metal recovery performance.

Q7. Can ion exchange resins be integrated with solvent extraction in copper hydrometallurgical processes?

Ion exchange resin and solvent extraction technologies can be combined in certain copper hydrometallurgical flowsheets to improve purification and recovery performance. Resin systems may serve as polishing steps, impurity removal units, or selective recovery stages depending on process requirements. The appropriate combination depends on feed composition, recovery objectives, and required product quality. FKN provides resin selection guidance for copper, molybdenum, tin, and bismuth recovery applications where integrated separation technologies are considered.

Q8. How do chloride and fluoride ions influence resin performance in base metal recovery processes?

Chloride and fluoride ions may influence resin adsorption behavior depending on resin chemistry, target metal complexes, and solution concentration. High levels of competing anions can affect selectivity, capacity, and regeneration requirements in some hydrometallurgical systems. Proper evaluation of the complete solution composition is important when selecting a suitable resin. FKN base metal recovery resin recommendations consider chloride, fluoride, and other dissolved components to help optimize resin performance in copper, tin, molybdenum, and bismuth recovery applications.

Q9. What operating parameters should be optimized for resin columns in copper and molybdenum recovery?

Important resin column operating parameters include flow rate, bed height, particle size, solution temperature, metal concentration, and breakthrough behavior. Proper optimization improves mass transfer efficiency, reduces pressure drop, and maximizes resin utilization. In copper and molybdenum hydrometallurgy, column testing is commonly used to determine suitable operating conditions before scale-up. FKN resin selection support evaluates process requirements to help engineers design stable adsorption systems for efficient recovery of base metals from leaching solutions.

Q10. What laboratory tests are recommended before selecting a resin for copper, molybdenum, tin, or bismuth recovery?

Before industrial application, resin performance should be verified through laboratory evaluation using representative leach solutions. Common tests include batch adsorption experiments, column breakthrough studies, regeneration performance evaluation, chemical stability testing, and impurity interference analysis. Important parameters include pH, temperature, metal concentration, competing ions, and resin capacity. FKN base metal recovery resin selection is based on application-specific testing to help mining and metallurgical companies identify suitable resin systems for copper, molybdenum, tin, and bismuth hydrometallurgical recovery.
