Battery Minerals (Lithium, Nickel, Cobalt, Manganese, Vanadium) Recovery Resin Selection Guide

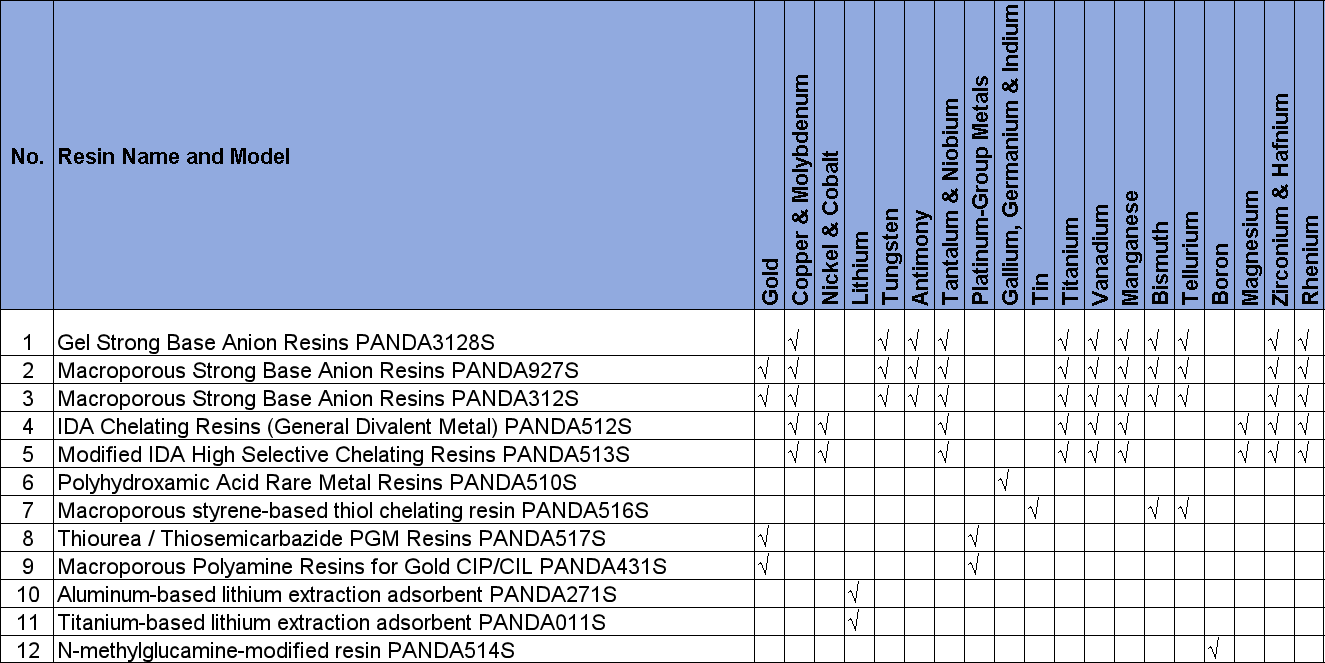

Mining Resin Selection Matrix

FKN PANDA provides different ion exchange resins and adsorption materials for precious metals, base metals, rare metals, and lithium recovery applications. The following matrix summarizes typical resin application suitability.

For detailed technical parameters and application conditions, please refer to each resin product page.

1. Nickel & Cobalt Resin Selection Guide

1.1 PANDA512S General Economical IDA Resin (Low-end / Wastewater Scenarios)

• Adsorption Characteristics: Broad-spectrum adsorption of divalent metals, synchronously adsorbs Ni, Co, Cu, Mn, Mg, Zn without obvious selectivity.

• Applicable Working Conditions

1. Nickel & cobalt containing wastewater from electroplating and smelting for impurity removal to meet discharge standards

2. Rough enrichment of nickel and cobalt from low-magnesium, low-impurity simple leachate

3. Low-cost crude recovery from laterite nickel ore and ternary waste without high-purity requirements

• Advantages & Disadvantages: Low price, simple operation; adsorption sites will be occupied by high-magnesium feed liquid, limited nickel-cobalt purity and recovery rate.

• Foreign Trade Positioning: Water treatment, small-scale mines, entry model for low-cost crude recovery.

1.2 PANDA513S High Selectivity Modified IDA Resin (High-end / Main Smelting Product)

• Adsorption Characteristics: Modified optimized skeleton, adsorption priority Cu＞Ni＞Co≫Mn, Mg, Ca, strongly repels alkaline earth impurities, nickel-cobalt selectivity far better than PANDA 401. High mechanical strength, resistant to loss from continuous regeneration.

• Applicable Working Conditions

1. High-magnesium laterite nickel ore leachate (core industrial scenario), selectively extract nickel and cobalt while retaining magnesium impurities

2. Ternary lithium battery recycling leachate, refine low-magnesium battery-grade nickel-cobalt liquid

3. Deep impurity removal at the back end of high-purity nickel-cobalt salt production

4. Automatic continuous column production in factories for long-term stable operation

• Advantages & Disadvantages: High finished product purity, long service life, strong anti-interference against impurities; slightly higher purchase unit price.

• Foreign Trade Positioning: Main recommended model for large smelters, lithium battery resource recovery, high-purity metal production.

1.3 Simplified Selection Comparison of PANDA512S / PANDA513S

1.4 Advanced Separation Solution for Single Nickel / Cobalt Metal (Value-added Answer for Customers)

PANDA512S /PANDA513S cannot separate nickel and cobalt from each other. Two mature industrial solutions are available if high-purity single metal products are required:

1. Solution 1 (Mainstream for Large-scale Mass Production): P507 solvent extraction for nickel-cobalt pre-separation + PANDA513S for deep impurity removal and refining at the back end

2. Solution 2 (High-purity Refining for Medium & Small Flow): Supporting special PANDA543S nickel-cobalt separation resin (accurately separate nickel and cobalt under strong acid system, equivalent to imported TP220/CH-27), only for high-end customized solutions, not listed separately on the website.

1.5 Core Summary of Nickel & Cobalt Resins

• Wastewater treatment, low-cost crude recovery → PANDA512S

• High-magnesium nickel ore, lithium battery recycling, high-purity refining → PANDA513S

2. Complete Selection Guide for Lithium Extraction Adsorbents

2.1 Basic Principles & Essential Differences Between Two Types

Aluminum-based PANDA271S Adsorbent (Layered Aluminum Hydroxide GLDH)

• Adsorption Mechanism: Reversible intercalation of LiCl between layered lattices, lithium ion sieving relying on interlayer spacing size; lithium desorption via water washing, almost no strong acid required

• Applicable pH: 4~8 neutral / weak acid; layered structure collapses and fails under strong alkaline environment

Titanium-based PANDA011S Ion Sieve (Metatitanic Acid H₂TiO₃)

• Adsorption Mechanism: Monoclinic crystal rigid lattice pores, only Li⁺ can intercalate; desorption via dilute hydrochloric acid pickling, chemical ion exchange sieving

• Applicable pH: 7~14 neutral to strong alkaline brine, resistant to high alkali systems

2.2 Horizontal Comparison Table of Core Performance

2.3 Scenario-based Selection Judgment

Scenario 1: Chloride-type Salt Lake (Qarhan, Uyuni South America High-Magnesium Old Brine, Salt Pan Tail Brine) → Prioritize Aluminum-based PANDA160

Brine Characteristics: High magnesium, high chloride ion, natural neutral pH, abundant sulfate;

Advantages of PANDA271S: No acid-base adjustment of raw brine required, direct feeding, greatly reducing chemical agent cost; water washing desorption eliminates hydrochloric acid procurement and hazardous waste treatment cost; fast adsorption speed, higher production capacity for large-flow low-concentration salt pan brine;

Shortcomings: Completely unavailable for alkaline brine, low adsorption capacity, higher consumables per ton for large-scale high-lithium brine.

Scenario 2: Carbonate-type Salt Lake, Lithium Precipitation Mother Liquor, Alkaline Oilfield Brine → Only Titanium-based PANDA011S

Brine Characteristics: pH＞9 strong alkalinity, high carbonate, high lithium concentration;

Irreplaceable Advantages of PANDA011S: Stable structure under high alkali environment, PANDA271S will directly pulverize and scrap under this working condition; adsorption capacity is 2~4 times that of PANDA271S, less consumables for high-concentration lithium liquid; deep lithium recovery from lithium precipitation mother liquor with stronger economic benefits for residual trace lithium;

Restrictions: Brine with excessive sulfate must be pretreated, otherwise adsorption capacity drops sharply.

Scenario 3: Oilfield Associated Brine, Brine with Oil Suspended Impurities → Prioritize Aluminum-based PANDA271S

PANDA271S has stronger resistance to organic matter, suspended solids and crude oil impurities, not easy to block pores and poison; PANDA011S pores are easily blocked by oil stains with high pretreatment cost.

Scenario 4: Ten-thousand-ton Long-cycle Lithium Mass Production Projects, Stable Operation for Consecutive Years → Titanium-based PANDA900 Has Lower Long-term Comprehensive Cost

PANDA011S can be continuously used for 2~3 years after single filling, with far more cycles than PANDA271S; PANDA271S requires higher annual material replenishment, suitable for small and medium short-term lithium extraction projects.

Scenario 5: Regions with Strict Environmental Control and Prohibition of Acidic Hazardous Waste Discharge → Mandatory Aluminum-based PANDA271S

PANDA271S adopts pure water regeneration without pickling throughout the process, no heavy metal acidic waste liquid; PANDA011S pickling produces acidic hazardous waste with higher environmental approval threshold.

2.4 Simplified Selection Mnemonic (Foreign Trade Communication Script)

• Neutral brine, high-magnesium chloride salt lake, no acid demand → Aluminum-based PANDA271S

• High-alkali brine, carbonate salt lake, lithium precipitation mother liquor → Titanium-based PANDA011S

• Oilfield brine with oil, strict hazardous waste environmental control → Aluminum-based PANDA271S

• Large long-term production line, high lithium concentration brine, low consumables demand → Titanium-based PANDA01

3. Manganese Recovery Supporting Resin Selection Guide

3.1 PANDA 201×7 Gel Strong Base Anion Resin

Does not adsorb divalent manganese cations, only used for clean clarified feed liquid systems containing permanganate and manganese complex anions, supporting removal of associated anionic impurities such as vanadium, molybdenum, tungsten, chromium; applicable to scenarios with precise filtration and extremely low turbidity, high exchange capacity, suitable for deep impurity removal and purification section of high-purity manganese liquid at the back end.

3.2 PANDA 201 Macroporous Strong Base Anion Resin

General industrial supporting model, does not capture manganese ions, specially treats manganese ore acid leach raw liquid, adsorbs associated anionic impurities such as vanadium, molybdenum, tungsten, chromium in feed liquid; has basic resistance to trace mine sludge, compatible with conventional filter-pressed manganese leachate, pre-purifies feed liquid to reduce load of subsequent chelating resins, mainstream pre-impurity removal resin for manganese smelting.

3.3 PANDA 816 Mining-grade Macroporous Weak Base Anion Resin

Special for pre-purification of high-impurity manganese feed liquid in mines, no manganese adsorption; extra-large pore and high wear-resistant structure, can directly treat crude heap leachate of manganese ore and high-turbidity manganese-containing wastewater from flue dust washing, tolerates massive mine sludge, colloid and flotation reagents, stably removes anionic impurities such as vanadium and chromium, suitable for overseas small manganese mines without precise filtration.

3.4 PANDA 401 IDA Chelating Resin (Crude Impurity Removal for Manganese System)

After pre-impurity removal by anion resin, tail liquid enriches Mn²⁺, Cu²⁺, Zn²⁺, Fe²⁺ and other divalent metals. D401 broadly chelates various heavy metal cations, can synchronously recover manganese and associated copper, zinc and iron; suitable for crude purification of wastewater and low-cost manganese enrichment recovery in small and medium manganese plants, simple operation and convenient regeneration.

3.5 PANDA 402 Modified High Selectivity IDA Chelating Resin (Crude Impurity Removal for Manganese System)

Used for manganese leachate tail liquid containing high magnesium and high calcium impurities, preferentially selectively adsorbs Cu, Ni, Co, has stable adsorption capacity for manganese, strongly repels magnesium and alkaline earth metals; suitable for large-scale electrolytic manganese and comprehensive manganese smelting projects, can separate manganese from magnesium and calcium impurities to produce high-purity concentrated manganese liquid and realize graded recovery of valuable metals.

Core Division Summary

• PANDA 201×7 / PANDA 201 / PANDA 816: Pre-remove anionic impurities such as vanadium, chromium, molybdenum, tungsten without manganese adsorption; select according to feed liquid cleanliness.

• PANDA 401 / PANDA 402: Back-end chelation to capture manganese and base metal impurities, core supporting resins for manganese recovery enrichment and crude impurity removal.

4. Vanadium Recovery Resin Selection Guide

4.1 PANDA 201×7 Strong Base Anion Exchange Resin

Suitable for adsorption and enrichment of vanadium in acid oxidized vanadium-containing solution, stable adsorption effect when vanadium exists in vanadate anion form. Mainly used for high-purity vanadium liquid refining section with clarified and low-turbidity feed liquid, high exchange capacity, good vanadium liquid purity after elution, suitable for vanadium extraction in clean feed liquid systems.

4.2 PANDA 816 Macroporous Weak Base Anion Exchange Resin

Suitable for vanadium extraction from crude mine leachate and high-turbidity vanadium-containing feed liquid with suspended solids. Macroporous wear-resistant structure with strong anti-pollution and anti-blocking capacity, can stably adsorb vanadium in vanadium ore leachate and tail liquid with many impurities, suitable for on-site use under poor working conditions.

4.3 PANDA 201 Macroporous Strong Base Anion Exchange Resin

Main industrial model for vanadium extraction, suitable for enrichment and recovery of vanadium in conventional vanadium ore acid leachate. Fast adsorption rate for vanadate anions and stable operation, can treat filter-pressed vanadium-containing feed liquid, balances adsorption capacity and impurity resistance, compatible with most vanadium smelting processes.

4.4 PANDA 401 Chelating Resin

Used for crude impurity removal treatment of waste liquid after vanadium extraction, no vanadium adsorption. Mainly removes heavy metal cations such as iron, copper, nickel, zinc from feed liquid to realize purification of vanadium extraction tail liquid and meet wastewater discharge or subsequent treatment requirements.

4.5 PANDA 402 Chelating Resin

Used for crude impurity removal and deep purification of waste liquid after vanadium extraction, no vanadium adsorption. Can selectively remove divalent metal ions such as copper and nickel to further purify vanadium extraction tail liquid, suitable for supporting sections requiring stricter wastewater treatment standards.

Battery Mineral (Nickel, Cobalt, Lithium, Manganese and Vanadium) Recovery Resin Selection Guide – FAQ

Q1. How should ion exchange resins be selected for nickel and cobalt separation from battery recycling leach solutions?

Nickel and cobalt separation resin selection depends on the chemical composition of the leach solution, including metal concentration, pH, acidity level, competing ions, and impurity content. Chelating resins with suitable functional groups are commonly evaluated for selective adsorption of transition metals such as nickel and cobalt. FKN battery mineral recovery resins are designed for hydrometallurgical applications where selective metal recovery, resin stability, and regeneration efficiency are important considerations. Laboratory adsorption and column tests are recommended to determine the most suitable resin system for specific battery recycling or ore leaching conditions.

Q2. How do chelating resins selectively recover nickel from battery mineral leach solutions?

Chelating resins recover nickel through coordination between metal ions and functional groups within the resin matrix. The selectivity depends on the resin chemistry, solution pH, competing metal ions, and the stability of metal complexes formed during adsorption. In battery mineral recovery processes, chelating resins can be evaluated for separating nickel from cobalt, manganese, calcium, magnesium, and other dissolved metals. FKN nickel recovery resin solutions focus on improving separation efficiency while maintaining suitable adsorption capacity, mechanical strength, and regeneration performance for continuous hydrometallurgical operations.

Q3. How do iron and aluminum impurities affect resin performance in battery recycling leach solutions?

Iron and aluminum impurities are common in battery recycling and mineral leaching processes and may compete with target metals for adsorption sites or cause resin fouling under certain conditions. Proper solution pretreatment, pH adjustment, and impurity removal can help maintain stable resin operation. FKN battery mineral recovery resin selection considers impurity levels in actual process streams to reduce interference and improve selective recovery of valuable metals such as nickel, cobalt, lithium, and manganese. Pilot testing is recommended for complex leach solutions with high impurity concentrations.

Q4. What factors affect the acid resistance of resins used in high-concentration sulfuric acid leaching systems?

High-concentration sulfuric acid leach solutions require resins with appropriate chemical stability and resistance to acidic environments. Resin performance depends on polymer matrix structure, functional group stability, temperature, acid concentration, and exposure time. Before industrial application, acid resistance testing should be conducted under representative process conditions. FKN hydrometallurgical recovery resins are evaluated for applications involving acidic battery mineral leachates, helping engineers select suitable resin systems according to process requirements and long-term operating conditions.

Q5. How do pH conditions influence nickel and cobalt separation using ion exchange resin columns?

pH control is a critical parameter in nickel and cobalt separation because it affects metal speciation, resin functional group activity, and adsorption selectivity. The optimal pH range depends on the resin type, target metal concentration, and the presence of competing ions. In industrial hydrometallurgical circuits, controlled pH adjustment can improve separation efficiency and reduce unwanted adsorption of impurities. FKN battery mineral recovery resin solutions are selected based on actual leaching chemistry to support stable column operation and efficient metal recovery.

Q6. Can ion exchange resins be combined with solvent extraction in battery mineral recovery processes?

Ion exchange resins and solvent extraction technologies can be integrated in some battery mineral recovery flowsheets to improve metal separation and purification. Resin systems may be used for selective polishing, impurity removal, or recovery of specific metal ions after primary extraction steps. The suitable process combination depends on feed composition, recovery targets, and required product purity. FKN provides resin selection guidance for applications involving nickel, cobalt, lithium, manganese, and vanadium recovery from complex hydrometallurgical solutions.

Q7. How do calcium and magnesium ions affect lithium recovery resin performance?

Calcium and magnesium are common interfering ions in lithium extraction from mineral leachates and brines. Their presence may influence lithium adsorption selectivity, resin capacity, and regeneration requirements depending on resin chemistry and solution conditions. Proper resin selection and process optimization are important for maintaining lithium recovery efficiency in high-hardness solutions. FKN lithium recovery resin solutions are evaluated according to feed composition, impurity levels, and operating parameters to help achieve reliable lithium separation performance in hydrometallurgical applications.

Q8. What operating parameters should be considered when designing resin columns for battery mineral recovery?

Resin column performance depends on several operating parameters, including flow rate, bed height, particle size, solution viscosity, metal concentration, and breakthrough behavior. Proper hydraulic design helps minimize pressure drop, improve mass transfer, and maintain stable adsorption capacity. In battery mineral recovery applications, column testing is often used to optimize operating conditions before scale-up. FKN resin selection support considers process conditions and recovery objectives to assist engineers in designing efficient adsorption systems for nickel, cobalt, lithium, manganese, and vanadium recovery.

Q9. How does resin regeneration affect long-term performance in nickel and cobalt recovery processes?

Resin regeneration directly affects operating cost, recovery efficiency, and resin service life. The selection of regeneration agents and conditions depends on resin chemistry, absorbed metal species, acid or alkaline environment, and process requirements. Excessive regeneration intensity may reduce resin durability, while insufficient regeneration can lower adsorption capacity. FKN battery mineral recovery resins are evaluated with appropriate regeneration strategies to balance metal recovery performance, chemical consumption, and long-term resin stability in continuous hydrometallurgical operations.

Q10. What laboratory tests are recommended before selecting a resin for battery mineral recovery applications?

Before industrial implementation, resin performance should be verified through laboratory testing using representative process solutions. Common evaluation methods include batch adsorption tests, column breakthrough experiments, selectivity analysis, regeneration testing, and chemical stability evaluation. Important parameters include target metal concentration, competing ions, pH, temperature, flow rate, and resin capacity. FKN battery mineral recovery resin selection is based on application-specific testing to help mining companies and recycling operators identify suitable resin systems for efficient recovery of nickel, cobalt, lithium, manganese, and vanadium.
