High-Tech Scattered Metal Recovery Resin Selection Guide (Gallium, Germanium, Indium, Tellurium)

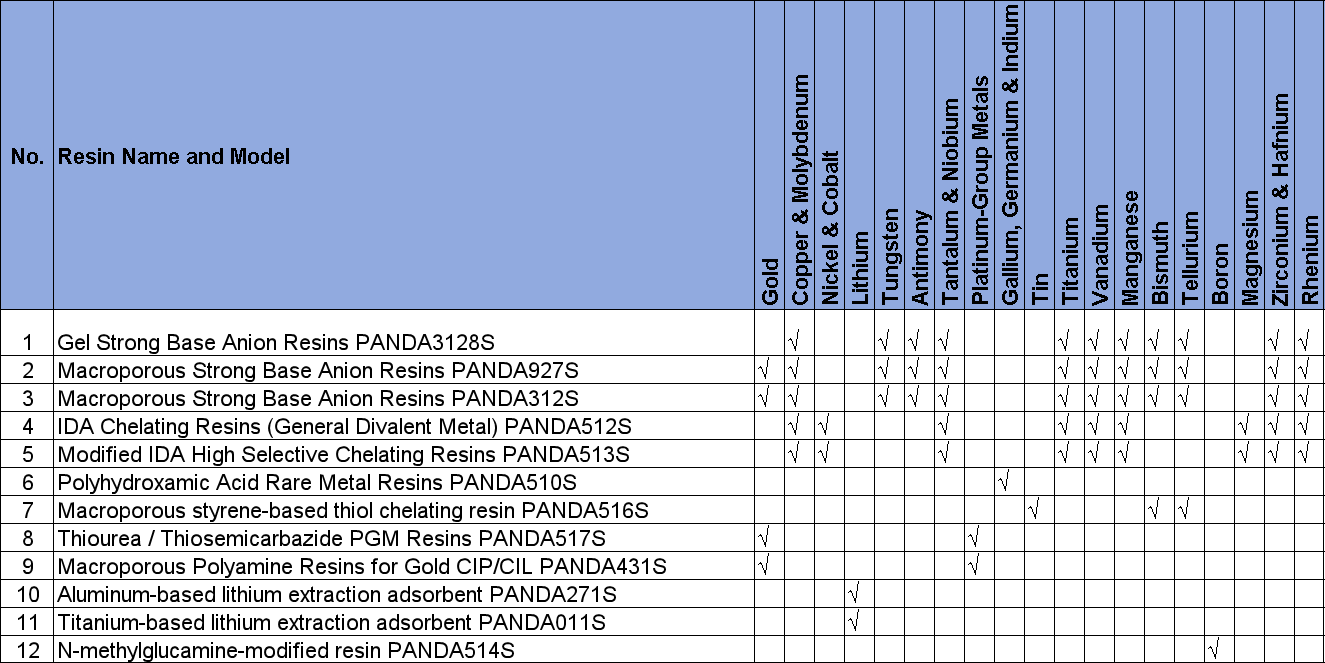

Mining Resin Selection Matrix
FKN PANDA provides different ion exchange resins and adsorption materials for precious metals, base metals, rare metals, and lithium recovery applications. The following matrix summarizes typical resin application suitability.
For detailed technical parameters and application conditions, please refer to each resin product page.
1. Gallium, Germanium & Indium Resin Selection Guide
PANDA510S is macroporous composite chelating resin with amidoxime + phosphonic acid functional groups, capable of synchronously adsorbing gallium, indium and germanium under acidic conditions.
1.1 Applicable Scenarios
Indium Extraction: Lead-zinc acid leachate, ITO waste acid, pH 0.5~2 strong acid environment, strong anti-interference against zinc, iron and copper impurities
Gallium Extraction: Zinc ore leachate, red mud acid leachate, Bayer mother liquor from alumina production, strong repulsion to aluminum impurities
Germanium Extraction: Zinc smelting waste liquid, lignite & fly ash acid leachate, optical fiber waste material, stable resistance to iron, lead and zinc impurities
1.2 Core Advantages
One single resin covers gallium, indium and germanium recovery, one set of equipment handles associated mixed feed liquid
Excellent tolerance to strong acid and high salinity, adapts harsh working conditions of zinc smelters
Stable regeneration performance, simple operation & maintenance, simplified product line for foreign trade sales
1.3 Shortcomings
Only supports preliminary rough enrichment and rough separation, unable to reach 6N / 7N ultra-high purity standards; dedicated special resins are required for further refining if ultra-high purity products are needed.
1.4 Selection Logic
Feed liquid contains gallium, indium and germanium simultaneously (90% overseas customer working conditions) → Choose PANDA510S
Only single metal recovery with ultra-high purity requirement → PANDA510S for rough enrichment + corresponding special refining resin
1.5 Reason for Not Listing Single-Metal Dedicated Resins Separately
90% overseas mining feed liquid contains co-existing gallium, indium and germanium. Single-metal dedicated resins have narrow application range, higher equipment investment and complicated daily operation & maintenance. PANDA510S provides one-stop universal solution which matches overseas clients' cost and working condition demands. Dedicated refining resins are only matched for post-process high-purity production.
If clients demand exclusive resin for gallium extraction, germanium extraction or indium extraction separately, please contact our customer service team for customized solutions.
2. Tellurium Recovery Resin Selection Guide
2.1 PANDA3128S Strong Base Anion Exchange Resin
Suitable for clean clarified feed liquid where tellurium exists as tellurate and chlorotellurate complex anions under acidic chloride or sulfate systems. Features high adsorption capacity and high purity eluted tellurium liquid, mainly applied for backend refining and enrichment of low-turbidity tellurium-containing solutions.
2.2 PANDA927S Macroporous Strong Base Anion Exchange Resin
Suitable for crude mine leachate with high turbidity and suspended solids. Adopts macroporous wear-resistant structure with strong anti-pollution and anti-blocking capacity, stably adsorbs tellurium complex anions in complex tellurium-bismuth and tellurium-copper associated ore leachate, applicable for on-site tellurium extraction under harsh working conditions.
2.3 PANDA312S Macroporous Strong Base Anion Exchange Resin
General mainstream industrial grade for tellurium extraction, compatible with most acidic tellurium-containing leachate. Fast adsorption speed for tellurium complex anions with stable running performance, can treat filter-pressed conventional tellurium feed liquid, balances adsorption capacity and impurity resistance, the primary choice for mainstream hydrometallurgical tellurium recovery processes.
2.4 PANDA516S Thiol Chelating Resin
Suitable for selective deep enrichment of tellurium under acidic systems. Possesses strong complexing adsorption capacity for tellurium, can preferentially capture tellurium from feed liquid mixed with copper, lead, bismuth, arsenic and other impurities with outstanding separation performance, widely used for ultra-high purity tellurium refining and efficient tellurium recovery from complex raw materials.
High-Tech Metal (Gallium, Germanium, Indium and Tellurium) Recovery Resin Selection Guide – FAQ
Q1. How should ion exchange resins be selected for gallium recovery from bauxite and industrial leaching solutions?
Gallium recovery from bauxite processing streams and industrial leach solutions requires resin selection based on gallium concentration, solution pH, competing ions, and the chemical form of gallium species. Suitable ion exchange resins are evaluated according to adsorption selectivity, capacity, regeneration efficiency, and chemical stability. FKN high-tech metal recovery resins are designed for hydrometallurgical applications where selective recovery of valuable metals from complex solutions is required. Laboratory batch tests and column experiments are recommended to determine appropriate resin performance under actual process conditions before industrial implementation.
Q2. What is the selective adsorption mechanism of chelating resins for germanium recovery?
Chelating resins recover germanium through interactions between specific functional groups and dissolved germanium species in acidic leaching solutions. The adsorption behavior depends on resin chemistry, germanium complex formation, solution acidity, competing metal ions, and impurity levels. Compared with general ion exchange materials, chelating resins can provide improved selectivity for certain metal ions when properly matched with the process chemistry. FKN germanium recovery resin solutions focus on application-specific evaluation to optimize adsorption performance, regeneration efficiency, and long-term resin stability in hydrometallurgical recovery systems.
Q3. How can ion exchange resins recover indium from zinc smelting residues and industrial waste solutions?
Indium recovery from zinc smelting residues and industrial process solutions requires selective separation from high concentrations of zinc, iron, and other dissolved metals. Ion exchange resins can be evaluated as a purification and recovery technology depending on solution composition, acidity, and target metal concentration. Key factors include resin selectivity, adsorption capacity, regeneration conditions, and impurity tolerance. FKN indium recovery resin solutions are developed for complex hydrometallurgical streams where efficient recovery of valuable high-tech metals is required while maintaining stable process operation.
Q4. How do anion exchange resins perform in tellurium recovery from alkaline leaching solutions?
Tellurium recovery from alkaline leaching solutions often involves adsorption of negatively charged tellurium oxyanion species, making anion exchange resins a potential option for selective recovery. Resin performance depends on tellurium concentration, alkaline conditions, competing anions, temperature, and regeneration methods. Proper resin selection helps balance adsorption capacity and selectivity in complex process solutions. FKN tellurium recovery resin systems are evaluated according to specific hydrometallurgical conditions to support efficient recovery and stable operation in industrial metal purification processes.
Q5. How do arsenic impurities affect germanium recovery resin performance?
Arsenic-containing impurities may influence germanium recovery by competing for adsorption sites or forming chemical species that affect resin selectivity. The impact depends on arsenic concentration, solution chemistry, resin functional groups, and pretreatment conditions. Proper impurity control, filtration, and process optimization can help maintain resin performance. FKN germanium recovery resin selection considers complex leach solution compositions to support selective recovery of germanium while minimizing interference from arsenic and other unwanted components in hydrometallurgical applications.
Q6. What factors affect resin adsorption kinetics during gallium recovery from semiconductor waste solutions?
Gallium recovery from semiconductor waste solutions requires careful evaluation of adsorption kinetics because metal concentration is often low and competing elements may be present. Important factors include resin functional groups, particle size, solution pH, temperature, contact time, and mass transfer characteristics. Optimizing these parameters can improve adsorption efficiency and reduce processing time. FKN gallium recovery resin solutions are evaluated through laboratory adsorption studies and column testing to help determine suitable operating conditions for recovering gallium from complex secondary resource streams.
Q7. Can ion exchange resin be combined with solvent extraction for germanium and high-tech metal recovery?
Ion exchange resin and solvent extraction technologies can be integrated in some high-tech metal recovery processes to improve separation efficiency and product purity. Resin systems may be used for selective adsorption, impurity removal, or final purification after solvent extraction stages. The appropriate combination depends on feed composition, target metal concentration, and required recovery performance. FKN high-tech metal recovery resin solutions support process evaluation for germanium, gallium, indium, and tellurium recovery where integrated hydrometallurgical technologies are required.
Q8. How do chloride ions and other competing anions influence indium and tellurium recovery resin performance?
Chloride ions and other competing anions can affect resin adsorption behavior by interacting with target metal complexes or occupying available adsorption sites. The degree of influence depends on resin chemistry, ion concentration, solution acidity, and metal speciation. Proper evaluation of the complete solution composition is essential for selecting a suitable resin system. FKN indium and tellurium recovery resin recommendations consider the presence of competing ions to help optimize adsorption selectivity, regeneration efficiency, and long-term operational stability.
Q9. What operating parameters should be optimized for resin columns used in high-tech metal recovery?
Resin column performance depends on operating parameters including flow rate, bed height, particle size, solution temperature, metal concentration, and breakthrough characteristics. Proper optimization improves mass transfer efficiency, reduces pressure drop, and maximizes resin utilization. For high-tech metal recovery applications, laboratory column testing is commonly used to determine suitable adsorption and regeneration conditions before scale-up. FKN resin selection support considers actual process requirements to help engineers design stable recovery systems for gallium, germanium, indium, and tellurium hydrometallurgical applications.
Q10. What laboratory tests are recommended before selecting a resin for gallium, germanium, indium, or tellurium recovery?
Before industrial application, high-tech metal recovery resins should be evaluated using representative leaching solutions and operating conditions. Recommended tests include batch adsorption experiments, column breakthrough analysis, selectivity evaluation, regeneration testing, chemical stability assessment, and impurity interference studies. Key parameters include pH, temperature, target metal concentration, competing ions, flow rate, and resin capacity. FKN resin selection is based on application-specific testing to help mining, metallurgical, and recycling companies identify suitable resin systems for recovering valuable high-tech metals.
