Industrial Mineral Purification Resin Selection Guide (Boron, Magnesium, Zirconium Hafnium, Titanium)

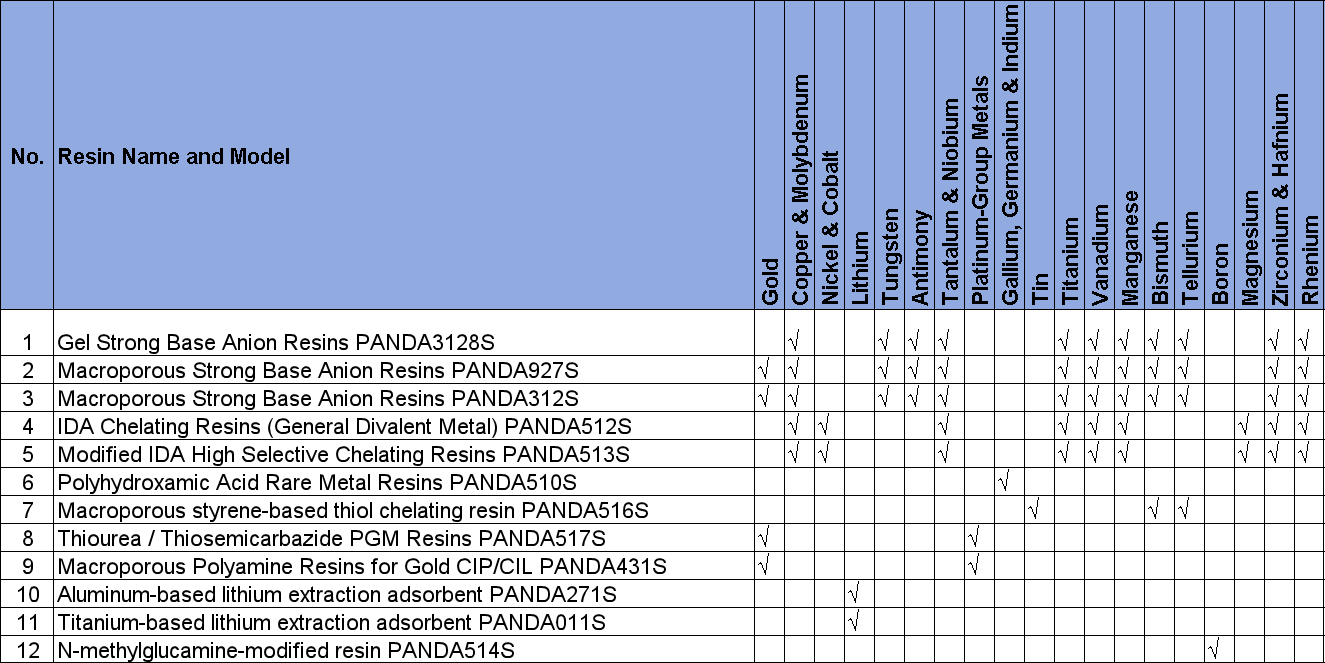

Mining Resin Selection Matrix
FKN PANDA provides different ion exchange resins and adsorption materials for precious metals, base metals, rare metals, and lithium recovery applications. The following matrix summarizes typical resin application suitability.
For detailed technical parameters and application conditions, please refer to each resin product page.
1. PANDA514S Meglumine Special Boron Removal Resin Selection Guide
PANDA 403 is a polystyrene macroporous chelating resin with N-methylglucamine functional groups, featuring specific selective adsorption for boron. It is used for boron removal and boron recovery in drinking water, wastewater and ultrapure water.
2. Magnesium Resin Selection Description
Application of supporting resins for magnesium extraction (only PANDA 401 and PANDA 402)
2.1 PANDA512S IDA Chelating Resin
With iminodiacetic acid as functional group, it can stably chelate and capture Mg²⁺ magnesium ions in feed liquid under weak alkaline environment, and synchronously adsorb divalent impurity cations such as calcium, iron, zinc and manganese.
Applicable scenarios: Rough enrichment of magnesium in salt lake brine, lithium salt mother liquor, manganese/vanadium/nickel smelting tail liquid, feed liquid softening and magnesium removal; low-cost magnesium removal section for small and medium-sized salt chemical and hydrometallurgy industries.
Performance characteristics: Broad-spectrum adsorption of alkaline earth metals, simple operation, low procurement cost and easy regeneration process; suitable for working conditions with coexisting magnesium and calcium impurities and no ultra-high purity separation requirements.
Process positioning: Rough impurity removal in magnesium system, preliminary concentration of magnesium ions, removal of excessive magnesium impurities in raw liquid to avoid magnesium interference in backend metal purification.
2.2 PANDA513S Modified High Selectivity IDA Chelating Resin
Also based on iminodiacetic acid skeleton, with optimized pore structure and chelation selectivity, it has stable adsorption capacity for magnesium and calcium, and preferentially captures heavy metals such as copper, nickel and cobalt, greatly reducing competitive adsorption interference between magnesium and transition metals.
Applicable scenarios: High magnesium and high calcium salt lake brine, lithium carbonate refining, deep magnesium removal in chlor-alkali secondary brine, purification section of large electrolytic metal smelting.
2.3 Performance Characteristics
Higher mechanical strength, long cycle service life, capable of graded separation of magnesium and nickel cobalt; can reduce magnesium content in feed liquid to trace level to meet production standards of high-purity salts and high-purity metals.
Process positioning: Deep magnesium removal and magnesium enrichment refining, suitable for large-scale production lines with strict control requirements for magnesium impurities and need for comprehensive recovery of valuable metals.
2.4 Selection Distinction Between Two Models
Small smelters, simple magnesium removal from brine, limited budget, only rough magnesium impurity removal required → PANDA512S
Large salt lake/lithium salt factories, high-purity raw material refining, high magnesium and high calcium complex feed liquid, separation of nickel cobalt associated metals required → PAND513S
3. Zirconium Hafnium Resin Selection Guide
Application description of supporting resins for zirconium hafnium recovery
3.1 PANDA3128S Gel Strong Base Anion Exchange Resin
In high-concentration hydrochloric acid chlorination system, zirconium and hafnium form chloro complex anions, and this resin can adsorb and enrich main zirconium and hafnium.
Only suitable for low-turbidity clarified zirconium hafnium feed liquid after multi-stage precision filtration, with high exchange capacity per unit volume. Gradient acid washing can initially separate zirconium and hafnium, mostly used for purification in zirconium hafnium refining section to produce high-purity zirconium hafnium concentrated liquid; gel small pore structure is not resistant to ore sludge and colloidal suspended solids, not applicable to crude mine leaching stock solution.
3.2 PANDA312S Macroporous Strong Base Anion Exchange Resin
General mainstream model for hydrometallurgical separation of zirconium and hafnium, suitable for conventional zirconium ore and zircon hydrochloric acid filter-pressed leachate.
Macroporous channels adapt to rapid diffusion of macromolecular zirconium hafnium chloro complex ions, resistant to trace ore sludge and organic impurities, balanced adsorption capacity and regeneration stability; graded separation of zirconium and hafnium through stepwise elution with hydrochloric acid of different acidity, standardized selection for zirconium hafnium smelting, balancing production efficiency and operation and maintenance costs.
3.3 PANDA927S Mining-Grade Extra-Large Pore Wear-Resistant Weak Base Anion Exchange Resin
Designed for high-impurity, high-turbidity crude mine leaching feed liquid, specially used for treating zirconium ore heap leachate and sediment-containing zirconium hafnium pickling wastewater.
High cross-linking macropore + enlarged particles, resistance to ore sludge blockage and mechanical scouring pulverization is far better than 201×7 and D201, can stably adsorb zirconium and hafnium complex anions without precision filtration pre-process, suitable for extensive zirconium ore sites in Africa and Southeast Asia.
3.4 PANDA512S IDA Chelating Resin (Rough impurity removal of zirconium hafnium tail liquid, no adsorption of zirconium and hafnium)
The penetrating waste liquid after adsorption of zirconium hafnium by strong base anion resin contains no zirconium hafnium, but enriches a large number of Fe, Cu, Zn, Mn, Ca, Mg cationic impurities.
PANDA 401 broadly chelates various divalent heavy metals and alkaline earth metals, removes iron, copper and zinc impurities in waste liquid at low cost to meet wastewater discharge standards, suitable for simple tail water treatment in small and medium-sized zirconium hafnium smelters.
3.5 PANDA513S High Selectivity Modified IDA Chelating Resin (Rough impurity removal of zirconium hafnium tail liquid, no adsorption of zirconium and hafnium)
Suitable for zirconium hafnium smelting tail liquid with high magnesium and high calcium impurities, preferentially selectively captures Cu, Ni, Co heavy metals, greatly repels magnesium and calcium alkaline earth metals.
Can deeply purify zirconium hafnium post-liquid and simply recover associated nickel cobalt valuable metals at the same time, with high mechanical strength and long cycle life, suitable for backend wastewater refining section of large-scale zirconium hafnium comprehensive smelting projects.
Overall Division Summary
PANDA3128S / PANDA312S / PANDA927S: Adsorb and enrich main zirconium and hafnium in high-concentration hydrochloric acid chlorination system, selected according to feed liquid cleanliness;
PANDA512S / PANDA513S: Supporting impurity removal for tail liquid after zirconium hafnium adsorption, no adsorption of zirconium and hafnium at all, only remove base metal impurities in waste liquid.
4. Titanium Resin Selection Scheme
Core Principle (One Sentence Distinction)
Hydrochloric acid titanium system: Titanium exists as TiOCl₄²⁻ anion → only strong base anion resin can adsorb titanium (PANDA3128S /PANDA312S /PANDA927S )
Sulfuric acid method / pickling wastewater: Titanium is cation, anion resin does not adsorb titanium; waste liquid iron copper nickel aluminum are cations → IDA chelating resin only removes impurities, does not adsorb titanium (PANDA 401/PANDA 402)
Complete Process: Anion resin enriches titanium → IDA resin backend impurity removal and metal recovery / water purification up to standard
4.1 Three Strong Base Anion Resins (Only Responsible for Titanium Extraction)
PANDA3128S Gel Strong Base
Features: High capacity, low cost, good purity
Applicable: Clear high-purity filtrate, precision filtered feed liquid, small-scale refining
Forbidden: High-turbidity, sediment-containing, colloidal feed liquid (easy to block pores)
PANDA312S Macroporous Strong Base (Mainstream Industrial Recommendation)
Features: Large macroporous flux, resistant to trace impurities, stable circulation
Applicable: Most titanium ore hydrochloric acid leachate, conventional factory filter-pressed feed liquid
Positioning: Mass production general mainstream model
PANDA927S Mining Heavy-duty Special Anion Resin
Features: Extra-large pores, high wear resistance, resistant to ore sludge colloid, suitable for crude feeding
Applicable: Overseas mine heap leachate, high sediment, crude leachate without precision filtration
Positioning: Special for harsh working conditions
4.2 PANDA 401 / PANDA 402 IDA Chelating Resins (Only Impurity Removal, No Titanium Extraction)
PANDA512S General Type
Function: Broad-spectrum removal of iron, copper, nickel, zinc heavy metals
Applicable: Small factories, simple wastewater up to standard, low-cost impurity removal
PANDA513S High Selectivity Modified Type
Function: Strong adsorption of copper nickel cobalt, repulsion of magnesium calcium manganese, capable of producing high-purity nickel cobalt by-products
Applicable: High magnesium complex waste liquid, large smelting comprehensive recovery projects
4.3 Complete Selection Scheme (Direct Application)
Clean high-purity feed liquid + low cost → PANDA3128S
Conventional industrial titanium leachate (mainstream) → PAND312S
Mine crude leaching, high sediment extensive working conditions → PANDA927S
Only wastewater up to standard, simple impurity removal → Front-end anion resin with PANDA512S
Nickel cobalt valuable metal recovery required, high magnesium feed liquid → Front-end anion resin with PANDA513S
Industrial Mineral (Boron, Magnesium, Zirconium, Hafnium and Titanium) Purification Resin Selection Guide – FAQ
Q1. How should ion exchange resins be selected for boron recovery from acidic leaching solutions?
Boron recovery from acidic leaching solutions requires careful resin selection based on boron concentration, solution acidity, competing ions, and the chemical form of boron species. Specialized ion exchange or chelating resin systems may be evaluated depending on the process chemistry and recovery objectives. FKN industrial mineral purification resins are designed for hydrometallurgical applications where selective adsorption, regeneration efficiency, and chemical stability are important considerations. Laboratory adsorption tests and column experiments are recommended to determine suitable resin performance under actual boron recovery conditions.
Q2. How can ion exchange resins be applied for magnesium extraction from salt lake brines?
Magnesium extraction from salt lake brines requires resin systems with suitable selectivity because brines typically contain high concentrations of sodium, calcium, potassium, and other dissolved ions. Resin performance depends on functional groups, ion selectivity, magnesium concentration, solution composition, and regeneration conditions. FKN magnesium recovery resin solutions are evaluated for complex brine environments where selective metal separation and stable operation are required. Pilot testing is recommended to assess adsorption efficiency, impurity interference, and process feasibility before industrial application.
Q3. What factors influence resin adsorption performance in zirconium and hafnium separation processes?
Zirconium and hafnium separation requires precise control because these metals have similar chemical properties and are often present in complex acidic leaching systems. Resin adsorption performance depends on functional groups, solution acidity, complexing agents, competing ions, and metal concentration. Suitable resin systems should be evaluated through laboratory testing to determine selectivity and regeneration behavior. FKN zirconium and hafnium recovery resins support hydrometallurgical separation processes by focusing on application-specific requirements, including adsorption capacity, chemical resistance, and long-term operational stability.
Q4. How do chelating resins selectively recover titanium from mineral leaching solutions?
Titanium recovery from acidic mineral leaching solutions depends on the chemical form of titanium species, solution composition, and resin functional groups. Chelating resins may provide selective interactions with target metal ions under controlled conditions. Important evaluation factors include acidity, competing metals such as iron, titanium concentration, and regeneration efficiency. FKN titanium recovery resin solutions are developed for industrial mineral purification applications where selective adsorption and stable resin performance are required. Laboratory testing helps determine suitable resin characteristics for specific titanium recovery processes.
Q5. How do calcium and magnesium ions affect resin performance in salt lake brine and mineral purification processes?
High concentrations of calcium and magnesium ions can influence resin performance by competing with target ions, reducing selectivity, or increasing regeneration requirements. This effect is particularly important in salt lake brines and mineral leaching solutions with complex ionic compositions. Proper resin selection, pretreatment, and operating condition optimization can improve separation efficiency. FKN industrial mineral purification resin solutions consider feed chemistry, impurity levels, and target recovery objectives to support stable ion exchange performance in challenging process environments.
Q6. How does fluoride concentration influence resin stability in magnesium, zirconium, and titanium recovery applications?
Fluoride ions are present in some mineral processing systems and may affect resin performance by forming metal-fluoride complexes or interacting with resin functional groups. The influence depends on fluoride concentration, acidity, temperature, resin structure, and target metal chemistry. Evaluating fluoride resistance is important when selecting resins for magnesium, zirconium, hafnium, or titanium recovery processes. FKN resin selection considers fluoride-containing process streams to help identify suitable materials with appropriate chemical stability and operational reliability.
Q7. Can ion exchange resins be combined with solvent extraction for zirconium, hafnium, and industrial mineral purification?
Ion exchange resin and solvent extraction technologies can be integrated in certain industrial mineral purification processes to improve separation efficiency and product quality. Resin systems may be used for selective recovery, impurity removal, or final solution polishing after extraction stages. The optimal process configuration depends on feed composition, target purity requirements, and recovery objectives. FKN purification resin solutions support evaluation of combined hydrometallurgical approaches for zirconium, hafnium, titanium, magnesium, and other industrial mineral applications.
Q8. What operating parameters should be optimized for resin columns in industrial mineral purification?
Resin column performance is influenced by flow rate, bed height, particle size, solution temperature, metal concentration, and breakthrough characteristics. Proper optimization improves mass transfer efficiency, reduces pressure drop, and increases resin utilization. In industrial mineral purification processes, column testing is commonly performed to determine suitable adsorption and regeneration conditions before scale-up. FKN resin selection support evaluates actual process conditions to help engineers design stable adsorption systems for boron, magnesium, zirconium, hafnium, and titanium recovery applications.
Q9. How do iron impurities affect titanium recovery resin performance?
Iron is a common impurity in titanium leaching systems and may interfere with titanium recovery by competing for adsorption sites or affecting solution chemistry. The impact depends on iron concentration, titanium species, acidity, resin selectivity, and pretreatment conditions. Proper impurity control and resin selection are important for maintaining stable recovery performance. FKN titanium purification resin solutions consider iron interference and other process variables to support selective recovery and reliable operation in complex mineral hydrometallurgical systems.
Q10. What laboratory tests are recommended before selecting a resin for industrial mineral purification applications?
Before industrial implementation, resin performance should be evaluated using representative process solutions and operating conditions. Recommended tests include batch adsorption experiments, column breakthrough analysis, selectivity evaluation, regeneration testing, chemical stability assessment, and impurity interference studies. Key parameters include pH, temperature, target metal concentration, competing ions, flow rate, and resin capacity. FKN industrial mineral purification resin selection is based on application-specific testing to help mining, mineral processing, and hydrometallurgical companies identify suitable resin systems for boron, magnesium, zirconium, hafnium, and titanium recovery.
