Precious Metal (Gold & Platinum Group Metal PGM) Resin Selection Guide

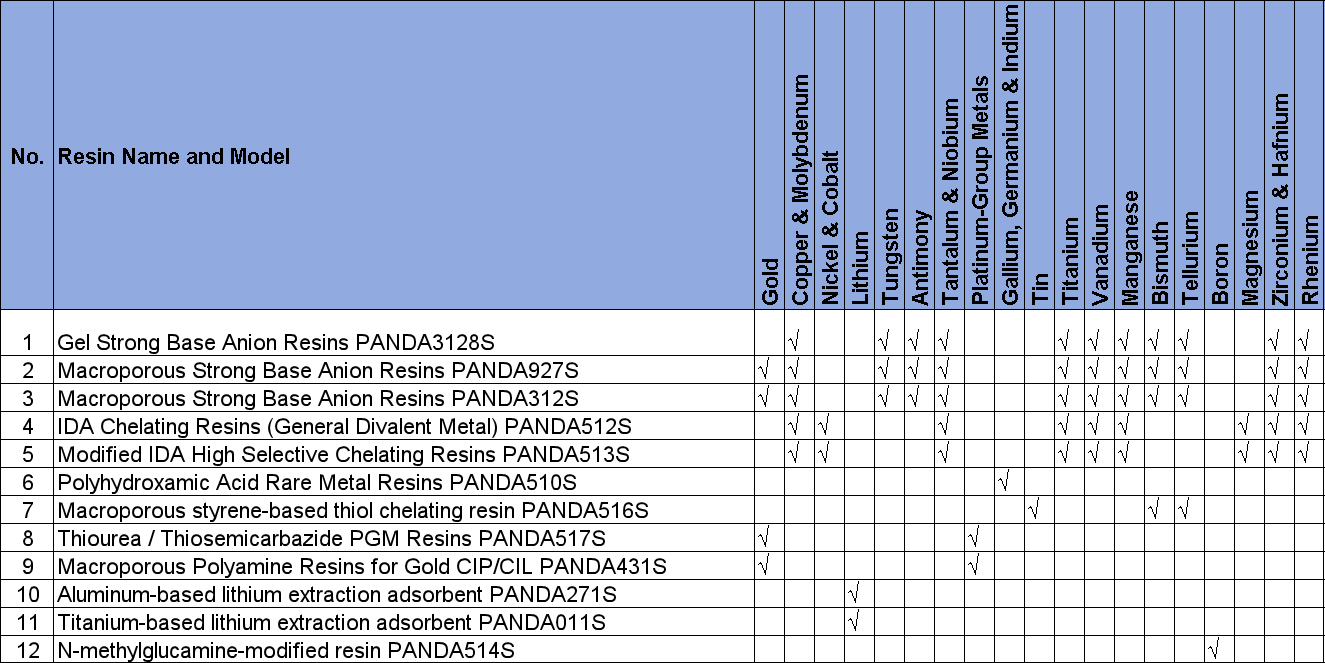

Mining Resin Selection Matrix

FKN PANDA provides different ion exchange resins and adsorption materials for precious metals, base metals, rare metals, and lithium recovery applications. The following matrix summarizes typical resin application suitability.

For detailed technical parameters and application conditions, please refer to each resin product page.

1. Gold Adsorption Resin Selection Guide

1.1 PANDA431S Weak Base Polyamine Resin (Core Gold Mine Resin, Independent CIP Gold Extraction Category)

• Applicable System: Alkaline cyanide ore pulp, full-slurry cyanidation gold mine process (CIP / CIL)

• Core Positioning: Professional mine gold extraction resin, equivalent to imported dedicated gold mining resin

• Process Characteristics: Large particle size, high abrasion resistance, sediment resistant, can be directly added into ore pulp; specifically adsorb cyanide gold complex ions, reusable after regeneration with low operating cost

• Forbidden Working Conditions: Not applicable for acidic chloride & non-cyanide waste gold recovery

• Website Category: Independent Category Gold CIP/CIL Macroporous Polyamine Resin

1.2 PANDA312S Macroporous Strong Base Anion Resin (Auxiliary Gold Recovery from Byproduct Wastewater, Not Specialized for Gold Ore)

• Applicable System: Gold-bearing clear liquid, smelting tail water, gold-containing byproduct wastewater from copper & molybdenum mines

• Core Positioning: General metallurgical anion resin, gold recovery as secondary function

• Process Characteristics: Only suitable for filtered clear liquid; simultaneously adsorb multiple anions including tungsten, molybdenum, vanadium, rhenium and gold, poor gold selectivity

• Forbidden Working Conditions: Strictly prohibited for CIP ore pulp; fine particles, easy crushing & pore blockage failure

• Website Category: Strong Base Anion Resins (with auxiliary Gold application label)

1.3 PANDA927S Mining-Grade Weak Base Anion Resin (Auxiliary Gold Recovery from High-Impurity Clear Liquid, Not Ore Pulp Resin)

• Applicable System: High-turbidity gold-bearing clear wastewater, gold-containing washing water from smelting flue dust, gold liquid from complex mine byproducts

• Core Positioning: Pollution-resistant general anion resin for secondary gold recovery from harsh clear liquid

• Process Characteristics: Better anti-colloid & anti-impurity performance than D201, co-adsorb multiple metals with average gold selectivity

• Forbidden Working Conditions: Cannot be used in cyanide ore pulp, cannot replace D320 gold mine process resin

• Website Category: Strong Base Anion Resins (with auxiliary Gold application label)

1.4 PANDA517S Thiourea Chelating Resin (Acidic Precious Metal Gold Recovery, Fully Independent System)

• Applicable System: Acidic chloride liquid, thiourea gold leaching, PCB waste, three-way catalytic converters, precious metal residue gold recovery

• Core Positioning: Non-cyanide, acidic high-selectivity dedicated precious metal resin

• Process Characteristics: Only adsorb gold, platinum, palladium, zero adsorption of base metals such as copper, nickel, iron, zinc with ultra-high purity; mostly saturated incineration for metal recovery, cannot be used in alkaline cyanide systems

• Forbidden Working Conditions: Decompose & fail under strong alkaline cyanide liquid, completely unsuitable for gold mine CIP process

• Website Category: Independent PGM & Precious Metal Chelating Resin

1.5 Core Summary of Gold Extraction Resins

• Professional gold mine CIP/CIL gold recovery → PANDA 320 only

• Gold recovery from smelting wastewater & byproduct clear liquid → PANDA 201 / PANDA 816 (non-professional gold extraction resins)

• High-purity precious metal recovery from acidic non-cyanide waste → PANDA 405-II (incompatible with gold mine systems)

2. Platinum Group Metal (PGM) Resin Selection Guide

• PANDA431S: Weak base polyamine resin, dedicated for alkaline cyanide ore pulp, recyclable after regeneration

• PANDA517S: Thiourea chelating resin, dedicated for platinum group metals in acidic chloride / aqua regia system, one-time incineration for gold/platinum/palladium recovery

2.1 PANDA431S Application Positioning (PGM Recovery for Gold Mine CIP/CIL Process)

• Applicable System: pH 9–13 alkaline cyanide ore pulp, cyanide clear liquid

• Adsorption Targets: Cyanide complex anions of gold, platinum, palladium

• Core Advantages: High abrasion resistance & sediment tolerance, direct addition into ore pulp; repeatedly regenerable with ultra-low mass production cost for mines

• Disadvantages: Failure in acidic systems; slight co-adsorption of copper, nickel, zinc cyanide impurities, average PGM selectivity

• Target Customers: Gold mine smelters, full-slurry cyanidation CIP/CIL production lines, recovery of trace associated platinum & palladium

• Forbidden Working Conditions: Prohibited for acidic waste liquid, aqua regia dissolved waste, non-cyanide systems

2.2 PANDA517S Application Positioning (High-Purity Fine Recovery of Platinum Group Metals)

• Applicable System: pH 0–5 acidic hydrochloric acid, nitric acid, aqua regia leaching clear liquid

• Adsorption Targets: Platinum, palladium, rhodium, iridium, gold (acidic chloride complex precious metals)

• Core Advantages: Extreme selectivity, zero adsorption of base metals copper, nickel, iron, aluminum; directly capture high-purity PGM from high-impurity waste materials

• Disadvantages: Direct decomposition & scrapped when contacting strong alkaline cyanide liquid; ultra-strong binding force prevents regeneration, only saturated incineration for metal recovery

• Target Customers: Three-way catalytic converters, PCB electronic waste, precious metal catalysts, platinum group metal refineries

• Forbidden Working Conditions: Strictly prohibited for cyanide ore pulp & alkaline systems

2.3 Core Difference Comparison of Two Resins

2.4 Standard Working Condition Selection Conclusion

• Gold mine cyanide ore pulp, cyclic production, low-cost mass production → PANDA431S

• Three-way catalyst / PCB / catalyst acid dissolution, demand for high-purity platinum & palladium → PANDA517S

• High alkaline cyanide feed liquid strictly forbidden to use PANDA517S

• Pure acidic waste strictly forbidden to use PANDA431S (complete failure)

Precious Metal (Gold and Platinum Group Metal) Recovery Resin Selection Guide – FAQ

Q1. What type of ion exchange resin functional group is suitable for gold recovery from cyanide leaching solutions?

For gold recovery from cyanide leach solutions, strong base anion exchange resins are commonly considered due to their ability to adsorb negatively charged gold cyanide complexes such as Au(CN)₂⁻. The selection of resin functional groups depends on solution chemistry, including cyanide concentration, pH, competing anions, and impurity levels. FKN precious metal recovery resins are designed for hydrometallurgical applications where high selectivity, adsorption capacity, and chemical stability are required. Laboratory column tests are recommended to evaluate resin performance under actual leaching conditions before industrial implementation.

Q2. How do high sulfur content gold ores affect resin performance during gold recovery?

High sulfur gold ores may release sulfur-containing compounds and organic impurities during leaching, which can affect resin adsorption performance through competitive adsorption or resin fouling. In these applications, proper pretreatment, solution clarification, and resin cleaning procedures are important for maintaining stable operation. FKN gold recovery resin solutions can be evaluated according to the specific impurity profile of the pregnant leach solution, helping optimize resin selection and operating conditions for complex gold ore processing environments.

Q3. How does thiourea concentration influence the elution efficiency of loaded gold recovery resin?

Thiourea concentration can significantly influence gold desorption efficiency when acidic thiourea elution systems are applied. The optimal concentration depends on resin characteristics, gold loading level, solution acidity, and the presence of competing metals. Excessive thiourea concentration may increase reagent consumption without improving recovery efficiency. For FKN gold recovery resins, elution conditions should be determined through laboratory testing to balance gold recovery, reagent usage, resin stability, and regeneration performance in continuous hydrometallurgical operations.

Q4. How do chloride ions affect gold adsorption capacity on recovery resins?

Chloride concentration can influence resin selectivity when gold exists as chloride complexes, especially in acidic chloride-based leaching systems. High chloride levels may compete with target metal complexes depending on resin chemistry and operating conditions. The impact should be evaluated together with pH, oxidation potential, metal concentration, and other dissolved ions. FKN precious metal recovery resin selection considers the specific leaching environment to ensure appropriate resin functionality for gold and platinum group metal recovery applications.

Q5. Can ion exchange resin be combined with activated carbon in gold recovery processes?

Ion exchange resin and activated carbon can be used together in certain gold recovery flowsheets depending on ore characteristics and process objectives. Activated carbon is widely applied in conventional CIP and CIL operations, while selective resins may provide advantages in specific solution conditions, such as low-grade leachates or solutions containing interfering components. The appropriate combination depends on recovery targets, solution chemistry, and plant design. FKN provides resin selection guidance based on metallurgical requirements rather than a single universal recovery method.

Q6. How do pH fluctuations affect gold adsorption kinetics on ion exchange resin?

Solution pH can influence the stability of gold complexes, resin ionization behavior, and adsorption kinetics during gold recovery. Although many strong base anion resins operate effectively within alkaline cyanide leaching conditions, significant pH variations may affect selectivity and loading performance. Monitoring and controlling pH within the designed process range helps maintain stable resin operation. FKN gold recovery resin evaluation includes consideration of actual leach chemistry to determine suitable operating parameters for adsorption efficiency and long-term resin performance.

Q7. How do copper ions interfere with gold adsorption in gold leach solutions?

Copper is a common interfering metal in some gold ores because copper cyanide complexes may compete with gold cyanide complexes for adsorption sites on anion exchange resins. The degree of interference depends on copper concentration, cyanide availability, resin selectivity, and process conditions. Selecting a resin with suitable selectivity characteristics and optimizing upstream leaching chemistry can improve gold recovery performance. FKN precious metal recovery resin solutions are evaluated based on target metal recovery requirements and impurity control conditions.

Q8. What factors should be considered when designing resin columns for gold heap leaching applications?

Gold heap leach solutions often contain variable metal concentrations and suspended solids, making resin column design critical for stable operation. Important factors include solution filtration, flow rate, resin particle size, bed height, pressure drop control, and loading capacity. Proper pretreatment can reduce resin fouling and improve operational reliability. FKN resin selection support considers heap leach conditions, including solution characteristics and recovery objectives, to help develop suitable adsorption column configurations for industrial applications.

Q9. How can organic contamination in gold leach solutions be controlled to maintain resin performance?

Organic compounds from ores, process additives, or flotation reagents may adsorb onto resin surfaces and reduce available adsorption sites. Effective control methods include solution clarification, activated carbon pretreatment, chemical cleaning, and optimized process management. The appropriate cleaning method depends on the type and severity of contamination as excessive treatment may affect resin structure. FKN gold recovery resin recommendations consider potential organic interference to support stable adsorption performance in complex hydrometallurgical systems.

Q10. What testing methods are recommended before selecting a gold or platinum group metal recovery resin?

Before industrial application, resin selection should be verified through laboratory evaluation using representative process solutions. Common tests include batch adsorption experiments, column breakthrough tests, loading capacity evaluation, elution performance testing, and regeneration studies. Key parameters include target metal concentration, competing ions, pH, temperature, flow rate, and resin stability. FKN precious metal recovery resin solutions are developed based on application-specific testing to help mining and metallurgical operations select suitable resin systems for gold and platinum group metal recovery.
