Strategic Metal Recovery Resin Selection Guide (Tungsten, Antimony, Tantalum, Niobium, Rhenium)

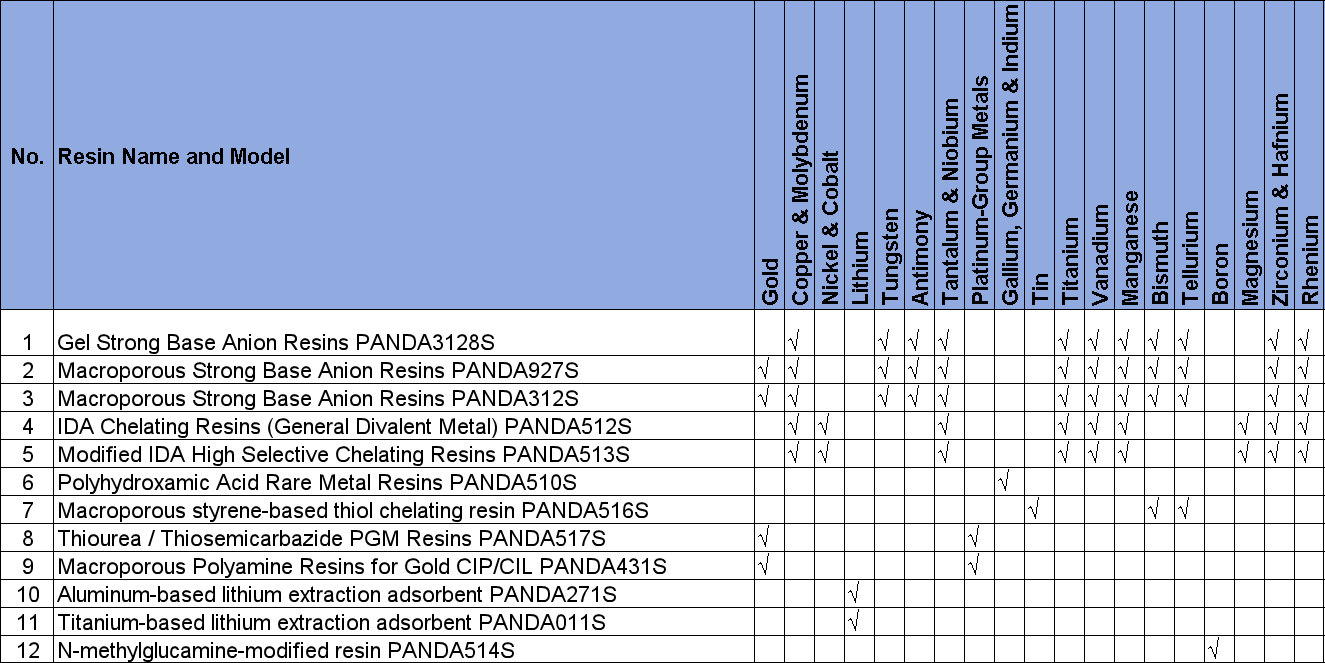

Mining Resin Selection Matrix

FKN PANDA provides different ion exchange resins and adsorption materials for precious metals, base metals, rare metals, and lithium recovery applications. The following matrix summarizes typical resin application suitability.

For detailed technical parameters and application conditions, please refer to each resin product page.

1. Simplified Tungsten Adsorption Resin Selection Guide

Tungsten exists as tungstate anions in solution, only strong base anion resins can achieve effective adsorption.

1.1 Quick Overview of Three Resin Grades

PANDA3128S Gel Strong Base Anion Resin

• Application: High-purity clarified tungsten mother liquor, low-turbidity refining processes

• Features: Highest exchange capacity, lowest unit cost

• Taboo: Strictly forbidden for feed liquid containing solid sediment or ore pulp with high turbidity

PANDA312S Macroporous Strong Base Anion Resin (Industry Mainstream Grade)

• Application: Conventional tungsten ore leachate, synchronous recovery of tungsten & molybdenum from associated ore

• Features: Balanced anti-contamination and universal performance, compatible with 90% industrial plant working conditions

• Positioning: Standard mass-production industrial grade

PANDA927S Mining-Grade Macroporous Strong Base Anion Resin

• Application: High-turbidity mine leachate, tailings wastewater, crude leachate with heavy impurities

• Features: Outstanding abrasion resistance & anti-pulverization, strong tolerance to sediment and oil sludge, no precise filtration required

• Positioning: Specialized model for overseas mines with harsh working conditions

1.2 Simplified Comparison Table

1.3 Tungsten & Molybdenum Co-Recovery Process Flow

1. Frontend: PANDA3128S / PANDA312S / PANDA927S synchronously adsorb tungsten and molybdenum

2. Separation: Stepwise elution to separate tungsten first then molybdenum, or adopt dedicated resin for deep separation

3. Backend: PANDA512S / PANDA513S for further recovery of copper and nickel from outlet liquid

1.4 Fast Customer Selection Reference

• Clear feed liquid, high-purity ammonium paratungstate production, cost control → PANDA3128S

• Conventional tungsten smelters, minor impurities, general versatility required → PANDA312S (Main Recommended)

• Crude mine leachate, flue ash wastewater, heavy sediment without precise filtration → PANDA927S

2. Antimony Recovery Resin Selection Guide

In hydrometallurgical systems, antimony exists as thioantimonate and antimonate anions; only quaternary ammonium strong base anion resins can adsorb and enrich antimony.

2.1 PANDA3128S Gel Strong Base Anion Resin (Economical High-Purity Refining Grade)

• Applicable Scenarios: Ultra-low turbidity high-purity sodium antimonate clarified mother liquor, backend refining of antimony smelting, clean feed liquid free of ore sludge and flotation reagents

• Core Features: Maximum exchange capacity, lowest cost, simple regeneration; gel non-porous structure leads slow adsorption of macromolecular thioantimonate, weak anti-contamination and abrasion resistance

• Forbidden Working Conditions: Never used for crude leachate or mine flue gas washing liquid with high suspended solids, prone to pore blockage and poisoning failure

2.2 PANDA312S Standard Macroporous Strong Base Anion Resin (Industrial General Main Grade)

• Applicable Scenarios: Conventional stibnite sulfide leachate, calcination waste acid, synchronous recovery of antimony-tungsten-molybdenum associated ore, feed liquid with trace mineral sludge

• Core Features: Through macropore channels fit macromolecular antimony complex adsorption, balance capacity and anti-contamination, compatible with 90% standard antimony smelting production lines for continuous column operation

• Shortcoming: Prone to fragmentation under long-term operation with heavy sediment and flotation reagents

2.3 PANDA927S Mining-Grade Macroporous Strong Base Anion Resin (Heavy-Duty High-Impurity Mine Grade)

• Applicable Scenarios: High-turbidity crude mine leachate, flue gas washing water, antimony-containing tailings wastewater, multi-metal complex smelting waste acid, crude mine working conditions without precise filtration

• Core Features: Extra-large pores, high abrasion & impact resistance, stable adsorption of macromolecular antimony salts without pre-filtration, stable performance under harsh mine conditions

• Shortcoming: Slightly higher purchase price, exchange capacity lower than gel resin

2.4 Three Resins Simplified Comparison Table

2.5 Complete Process Logic

• Scenario 1: Antimony-tungsten-molybdenum associated feed liquid – Select any of the three resins for synchronous anion adsorption, separate antimony, tungsten, molybdenum via gradient elution

• Scenario 2: Feed liquid containing copper & nickel – Frontend strong base anion resins recover antimony, tungsten, molybdenum; backend PANDA512S / PANDA513S chelating resins capture copper, nickel, cobalt cations to realize full metal recovery

Key Precondition: Resins only adsorb anionic antimony; antimony cations must be oxidized before adsorption.

2.6 Fast Selection Reference

• Clean refining production, cost control required → PANDA3128S

• Conventional antimony smelting, multi-metal associated recovery → PANDA312S (Main Recommended)

• Crude mine feed liquid with heavy sediment → PANDA927S

3. Tantalum & Niobium Recovery Resin Selection Guide

3.1 Core Functional Division (No Cross-Use Allowed)

PANDA3128S / PANDA312S / PANDA927S (Strong Base Anion Resins) = Main Resins for Tantalum & Niobium Extraction

Tantalum and niobium exist as TaF₇²⁻, NbF₇²⁻ fluoro-complex anions in hydrofluoric acid leachate; only strong base anion resins can adsorb and enrich tantalum & niobium, this is the exclusive separation system.

PANDA512S / PANDA513S only adsorb divalent cations such as Cu, Ni, Co, Fe, Mn, zero adsorption of tantalum & niobium fluoro-complexes, only applied to outlet liquid after anion resin treatment for base metal recovery and wastewater compliance.

3.2 Three Strong Base Anion Resins for Tantalum & Niobium Main Enrichment (Working Condition Classification)

PANDA3128S Gel Strong Base Anion Resin (High-Purity Refining Economical Grade)

• Application: Precisely filtered high-purity clarified mother liquor, backend refining of tantalum & niobium oxide, ultra-low turbidity clean feed liquid

• Shortcoming: Small pore structure leads slow adsorption of macromolecular fluoro-complex ions, vulnerable to pore blockage and poisoning by sediment and suspended solids

PANDA312S Standard Macroporous Strong Base Anion Resin (Industrial General Main Grade)

• Advantages: Macroporous channels accelerate adsorption of macromolecular tantalum & niobium fluoro-ions, balanced anti-trace impurity performance, capacity and stability fit 90% industrial production lines

PANDA927S Mining-Grade Macroporous Strong Base Anion Resin (High-Impurity Mine Special Grade)

• Positioning: First choice for continuous production in medium-sized smelters

• Application: Overseas open pit crude leachate, tailings wastewater, feed liquid with heavy sediment and colloid without precise filtration

• Shortcoming: Slightly higher purchase price, marginally lower exchange capacity

3.3 Backend Impurity Removal Logic for PANDA512S / PANDA513S (No Tantalum & Niobium Adsorption)

• Small Factory Matching: Simple crude removal of copper, nickel, cobalt from waste liquid for discharge compliance, low-cost treatment without high-purity byproducts

• Large Smelter Matching: Selective separation of nickel & cobalt from feed liquid rich in magnesium and manganese, produce high-purity nickel-cobalt liquid for automated continuous regenerable production lines

Two Standard Process Schemes

1. Scheme 1: Tantalum & niobium extraction only, no demand for byproduct metal recovery

2. Scheme 2: Tantalum & niobium enrichment + comprehensive copper-nickel-cobalt recovery (Mainstream Process)

3.4 Fast Selection Reference

• High-purity refining, clean feed liquid → PANDA3128S

• Conventional smelting, stable mass production → PANDA312S (Main Recommended)

• Crude mine feed liquid with heavy sediment impurities → PANDA927S

• Simple wastewater impurity removal, strict cost control → PANDA512S

• Feed liquid rich in magnesium, high-purity nickel-cobalt recovery required → PANDA513S

4. Rhenium Recovery Resin Selection Guide

Rhenium exists as monovalent ReO₄⁻ anions; selection focuses on adsorption strength, rhenium-molybdenum separation, anti-contamination, acid resistance and elution difficulty.

4.1 PANDA3128S Gel Strong Base Resin

• General-purpose grade with stable adsorption across full pH range

• Small pore size naturally screens partial molybdenum, low procurement cost

• Suitable for conventional molybdenum leachate with low impurities to extract rhenium

4.2 PANDA312S Macroporous Strong Base Resin

• Same strong base system, direct replacement compatible with PANDA 201×7 in existing processes

• Macropore anti-blocking design tolerates suspended solids and high salt, fit industrial large-flow production

4.3 PANDA512S Macroporous Weak Base Resin

• Selectively adsorb rhenium under acidic conditions with outstanding rhenium-molybdenum separation performance

• Easy elution with low chemical reagent cost, ideal for high-molybdenum low-rhenium systems

4.4 PANDA513S Macroporous Medium-Weak Base Resin

• Composite amine functional groups support wider acidic operating range

• Stronger resistance to arsenic and fluoride impurities, fit complex waste acid from copper smelting

4.5 PANDA927S Special Resin

• Pore size and functional groups customized exclusively for ReO₄⁻ anions

• High rhenium-molybdenum separation coefficient, excellent salt tolerance and enrichment ratio

• Applied for high-purity rhenium extraction and complex high-salt working conditions

4.6 PANDA226S Special High-Purity Rhenium Extraction Resin

• Conventional molybdenum smelting with low impurities: Existing resin models fully cover demand without PANDA226S matching

• Copper smelting waste acid rich in arsenic, fluoride and molybdenum with high-purity rhenium requirement: Add PANDA226S for backend deep refining

• New production line handling acidic complex waste liquid pursuing simplified high-purity process: Direct single use of PANDA226S

• Contact FKN to get the further technical information of PANDA226S


Strategic Metal (Tungsten, Antimony, Tantalum, Niobium and Rhenium) Recovery Resin Selection Guide – FAQ

Q1. How should ion exchange resins be selected for tungsten recovery from alkaline leaching solutions?

Tungsten recovery from alkaline leach solutions typically involves the adsorption of tungstate species, requiring careful selection of resin functional groups and operating conditions. Strong base anion exchange resins are commonly evaluated due to their ability to interact with negatively charged tungsten oxyanion species. Resin selection depends on tungsten concentration, pH, competing anions, impurity levels, and regeneration requirements. FKN strategic metal recovery resins are designed for hydrometallurgical applications where selective adsorption, chemical stability, and efficient regeneration are important factors. Laboratory and column testing are recommended to determine suitable resin performance under actual tungsten processing conditions.

Q2. What is the adsorption mechanism of resins for antimony recovery from hydrometallurgical leach solutions?

Antimony recovery using ion exchange resin depends on the chemical form of antimony present in the leach solution, including antimony oxide complexes, anionic species, and interactions with competing ions. The adsorption performance is influenced by resin functional groups, solution acidity, oxidation state, and impurity composition. FKN antimony recovery resin solutions are evaluated according to specific process conditions to improve selective metal recovery while maintaining resin stability and regeneration efficiency. Laboratory adsorption tests help determine the most suitable resin type for complex antimony-bearing hydrometallurgical streams.

Q3. How are chelating resins applied in tantalum and niobium hydrometallurgical separation?

Tantalum and niobium recovery requires selective separation due to their similar chemical properties and the presence of complexing agents in acidic leaching systems. Chelating resins may be evaluated for their ability to interact with specific metal complexes under controlled conditions. Resin performance depends on functional groups, acidity, fluoride concentration, competing ions, and solution chemistry. FKN strategic metal recovery resin solutions focus on application-specific evaluation to support tantalum and niobium separation processes, including laboratory testing of adsorption selectivity, regeneration behavior, and long-term chemical stability.

Q4. How do fluoride ions affect resin performance in tungsten and tantalum-niobium recovery processes?

Fluoride ions are commonly present in some tungsten, tantalum, and niobium leaching systems and may influence resin adsorption behavior by forming metal-fluoride complexes or competing with target species. The impact depends on resin chemistry, fluoride concentration, acidity, and process temperature. Proper resin selection and solution evaluation are important for maintaining stable recovery performance. FKN strategic metal recovery resins are assessed according to actual leach solution conditions to help engineers select suitable resin systems for fluoride-containing hydrometallurgical applications.

Q5. What factors influence resin adsorption capacity during tungsten hydrometallurgical recovery?

Resin adsorption capacity for tungsten recovery is affected by tungsten concentration, solution pH, competing anions, temperature, resin particle size, and flow conditions. Although high capacity is important, selectivity, regeneration efficiency, and mechanical stability are also critical for industrial operation. FKN tungsten recovery resin solutions are evaluated based on actual process requirements, helping optimize adsorption performance and resin utilization. Column breakthrough testing is commonly used to determine operating parameters such as loading time, flow rate, and regeneration conditions before commercial-scale application.

Q6. How do iron and arsenic impurities affect resin-based recovery of antimony and tungsten?

Iron and arsenic impurities may interfere with resin adsorption by competing for active sites or forming complexes that affect target metal recovery. The degree of interference depends on impurity concentration, solution chemistry, resin selectivity, and pretreatment conditions. Proper filtration, oxidation control, or impurity removal steps may improve resin performance. FKN strategic metal recovery resin selection considers complex feed compositions to support selective recovery of tungsten, antimony, and related valuable metals while reducing the impact of unwanted components.

Q7. Can ion exchange resin be combined with solvent extraction for tantalum, niobium, or strategic metal recovery?

Ion exchange resin and solvent extraction can be integrated in certain strategic metal recovery flowsheets to improve separation efficiency and product purity. Resin systems may be used for selective adsorption, impurity removal, solution polishing, or recovery of specific metal complexes after primary extraction steps. The suitable process combination depends on feed chemistry, target metal concentration, and required recovery performance. FKN provides resin selection guidance for tungsten, antimony, tantalum, niobium, and rhenium hydrometallurgical applications based on specific process requirements.

Q8. How should resin columns be optimized for tungsten recovery from leaching solutions?

Optimization of tungsten recovery resin columns requires evaluation of flow rate, bed height, resin particle size, solution viscosity, metal concentration, and breakthrough behavior. Proper column design improves mass transfer efficiency, reduces pressure drop, and maximizes resin utilization. In tungsten hydrometallurgy, laboratory column testing is often performed to determine suitable operating conditions before industrial scale-up. FKN resin selection support considers the complete process environment to help engineers develop stable adsorption systems for efficient tungsten recovery from alkaline or complex leaching solutions.

Q9. What regeneration methods are suitable for strategic metal recovery resins?

Resin regeneration methods depend on the target metal, resin functional group, loading level, and chemical environment of the process solution. Acidic or alkaline regeneration systems may be applied depending on the adsorption mechanism and metal complex chemistry. Proper regeneration optimization helps balance recovery efficiency, chemical consumption, and resin service life. FKN strategic metal recovery resin recommendations include evaluation of regeneration conditions to support continuous operation for tungsten, antimony, tantalum, niobium, and rhenium recovery applications.

Q10. What laboratory tests should be performed before selecting a resin for strategic metal recovery?

Before industrial application, strategic metal recovery resins should be evaluated using representative leach solutions and process conditions. Recommended tests include batch adsorption experiments, column breakthrough studies, selectivity evaluation, regeneration testing, chemical stability assessment, and impurity interference analysis. Key parameters include pH, temperature, metal concentration, competing ions, flow rate, and resin capacity. FKN resin selection support is based on application-specific testing to help mining and metallurgical companies identify suitable resin systems for tungsten, antimony, tantalum, niobium, and rhenium recovery.
